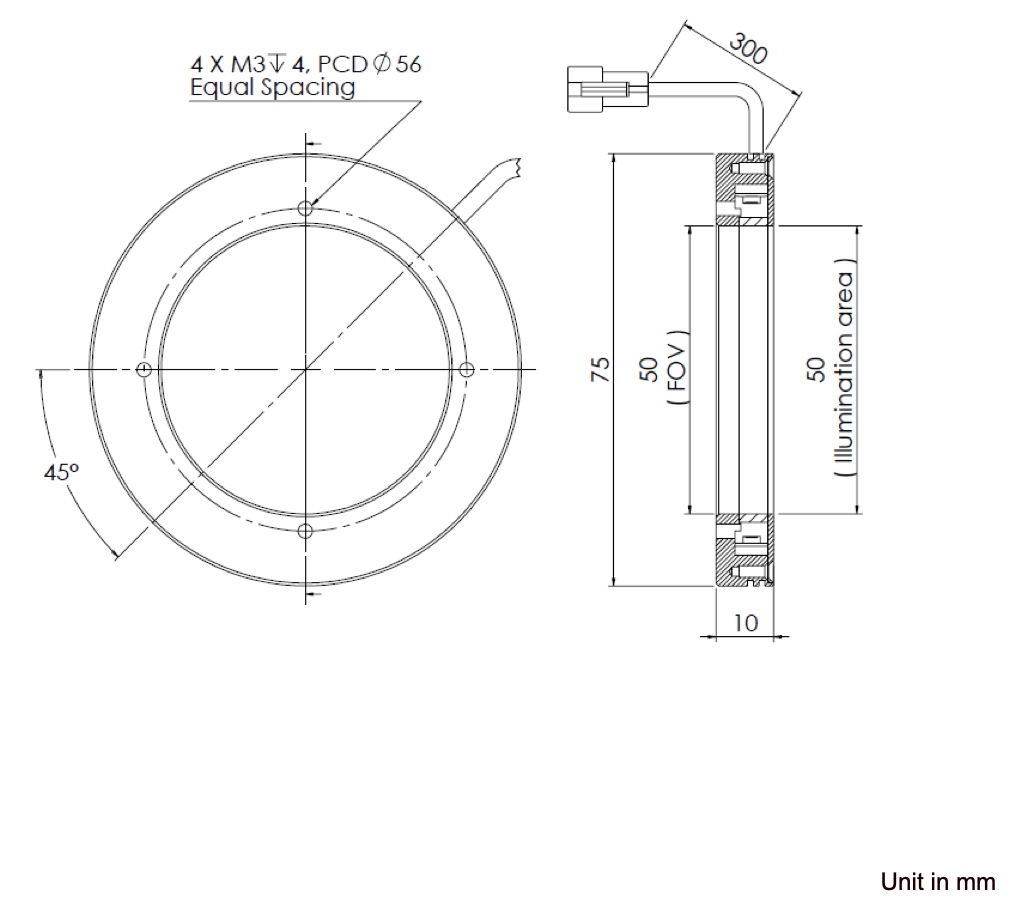

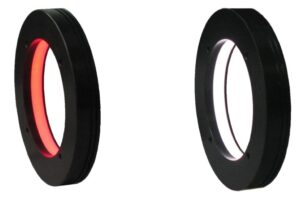

V2DR-Si75LA1 is a Low Angle Ring Light with surface mount  LEDs designed for machine vision application. It has an Outer Diameter (OD) of 75 mm and Inner Diameter (ID) of 50 mm, an illumination area of 50 mm in diameter. It comes in 5 spectrum, Red, Blue, Green and White and NIR.

Ordering Information

Models with Resistors :          V2DR-Si75LA1-R/R24/IR/IR24/G/B/W

Models without Resistors :  V2DR-Si75LA1-R/R24/IR/IR24/G/B/W-O

Example : Model for Blue version with no resistor : “V2DR-Si75LA1-B-O”,   Model for Green version with resistor “V2DR-Si75LA1-G”
