Guppy PRO F-032B
The Guppy PRO F-032B/C is an industrial camera with Sony’s ICX424 CCD sensor and a fast 1394b interface. At full resolution, it runs 82 fps. Guppy PRO cameras have an excellent price/performance ratio.
Options
- Various IR cut/pass filters
- White medical housing
- LUT (look-up table)
- Gamma
- Color correction
- AOI, separate AOI for auto features
- Binning
- Sub-sampling
- Auto gain (manual gain control: 0 to 24.4 dB)
- Auto exposure (75 µs to 67 s)
- Trigger programmable, level, single, bulk, programmable delay
- Storable user sets
The Guppy PRO F-032B/C is an ultra-compact 1394b camera for a large variety of industrial applications:
- Machine vision
- Robotics
- Logistics
- Security and Surveillance
- Healthcare
- Pharmaceutical industry
- Food inspection
- Motion analysis
- ITS/Traffic monitoring
- … and more
| Model Name | Guppy PRO F-032B/C |
|---|---|
| Interface | IEEE 1394b - 800 Mb/s, 1 port |
| Resolution | 656 × 492 |

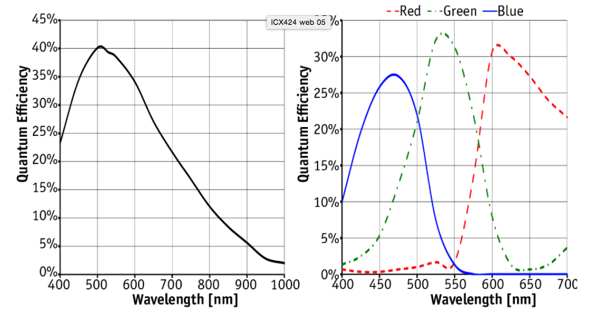

| Sensor | Sony ICX424 |
| Sensor type | CCD Progressive |
| Sensor size | Type 1/3 |
| Cell size | 7.4 µm |
| Lens mount | C-Mount |
| Frame rate | 82 fps |
| ADC | 12 Bit |
| Bit depth | 8-12 Bit |
| Mono modes | 8/12/16 |
| Color modes RGB | RGB8 |
| Raw modes | 8/12/16 |
| Opto-isolated I/Os | 1/3 |
| Operating temperature | +5 °C ... +45 °C |
| Power requirements (DC) | 8 V - 36 V |
| Power consumption (@12 V) | <3.5 W |
| Mass | 80 g |

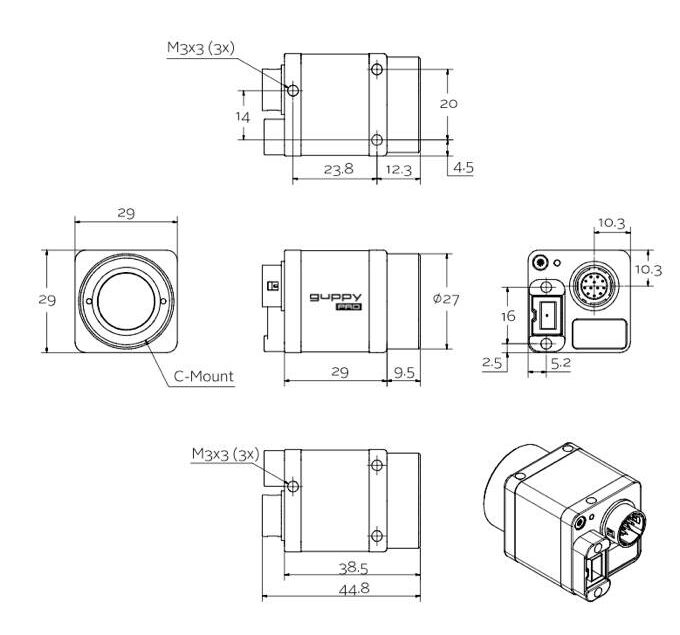

| Body dimensions (L × W × H in mm). | 44.8 × 29 × 29 mm incl. connectors |
| Regulations | CE, FCC Class B, RoHS |
