Stingray F-033C
The Stingray F-033B/C is a high-quality VGA camera. It is equipped with a sensitive Sony CCD ICX414 sensor and includes many image pre-processing functions. At full resolution, it runs at 84 fps. Higher frame rates can be reached by a smaller AOI, binning (b/w) or sub-sampling.
Options
- 1394b connectors: 2 x copper (daisy chain) or 1 x GOF, 1 x copper, Hirose power: out
- Various IR cut/pass filters, various lens mounts
- Angled head, compact housing version, board level version, white medical housing
- High SNR mode (up to 24 dB better signal-to-noise ratio)
- Low-noise binning mode
- Shading correction
- Defect pixel correction
- ROI, separate ROI for auto features
- Binning
- Decimation
- Auto gain (manual gain control: 0 to 24.4 dB)
- Auto exposure (31 µs to 67 s)
- Auto white balance
- LUT (look-up table)
- Hue, saturation
- Color correction
- Local color anti-aliasing
- Reverse X/Y
- Deferred image transport
- Trigger programmable, level, single, bulk, programmable delay
- Sequence mode (changes the camera settings on the fly)
- SIS (secure image signature, time stamp for trigger, frame count etc.)
- Storable user sets
The Stingray F-033B/C is a high-quality industrial VGA camera with many image pre-processing functions. It offers several opportunities for customization. This mid-priced camera fits for all sorts of applications with high demands, for example:
- Industrial inspection and automation
- Semiconductor inspection
- Logistics
- Science and research
- Healthcare and medical (light gray housing available)
- Ophthalmology
- Multimedia, entertainment and sports
- ITS (Intelligent traffic solutions)
Additionally, it is ideally suited for:
- Demanding OEM camera applications (board level versions with separate sensor board available on request)
- Daisy chaining (two copper connectors)
- Long cables – 400 meters and more without additional repeaters (GOF version Stingray F-033B/C fiber)
| Model Name | Stingray F-033B/C |
|---|---|
| Interface | IEEE 1394b - 800 Mb/s, 2 ports, daisy chain, fiber optic (GOF) optional |
| Resolution | 656 × 492 |

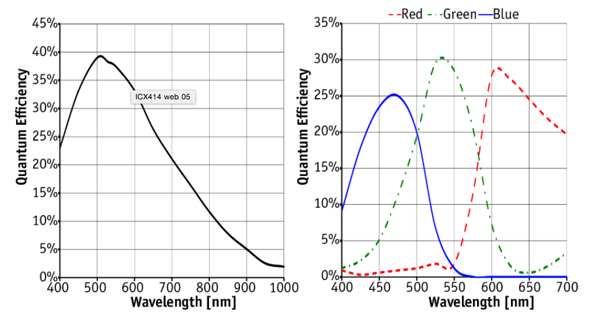

| Sensor | Sony ICX414 |
| Sensor type | CCD Progressive |
| Sensor size | Type 1/2 |
| Cell size | 9.9 µm |
| Lens mount | C |
| Frame rate | 84 fps |
| ADC | 14 Bit |
| On-board FIFO | 32 Mbyte |
| Bit depth | 8-14 Bit |
| Mono modes | Mono8, Mono12, Mono16 |
| Color modes RGB | RGB8 |
| Raw modes | Raw8, Raw12, Raw16 |
| Opto-isolated I/Os | 2 inputs, 4 outputs |
| RS-232 | 1 |
| Power requirements (DC) | 8 V - 36 V |
| Power consumption (@12 V) | <4 W |
| Mass | 92 g |
| Body dimensions (L × W × H in mm) | 72.9 × 44 × 29 mm including connectors, w/o tripod and lens |
| Regulations | CE, FCC Class B, RoHS |
