VS-MTC SERIES

Industry's Smallest and Lightest (*1)
S-mount Telecentric Lens
*1:An in-company investigation (Apr. 2019









Ultra compact and light weight 10g (1.0x) Telecentric lens

3models 0.69x/1.0x/2.0x

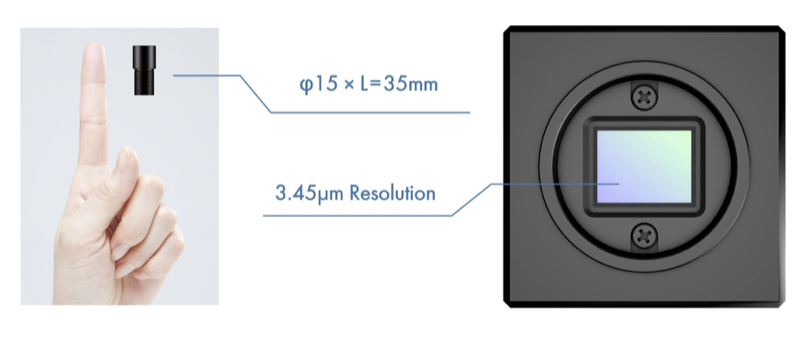

3.45μm Resolution

Optional lock ring is available.

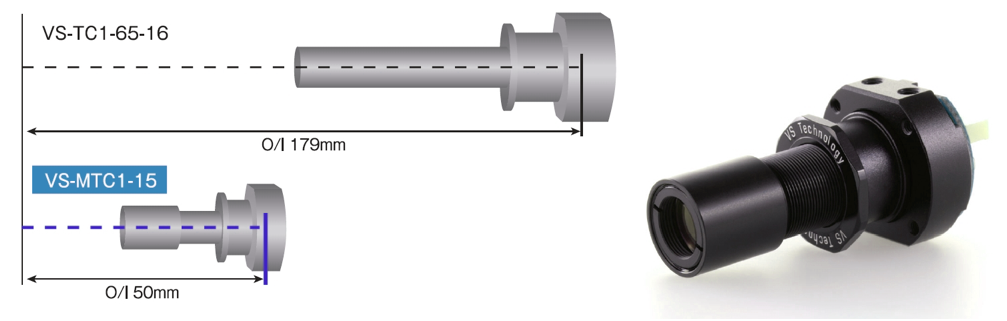

Compact Design

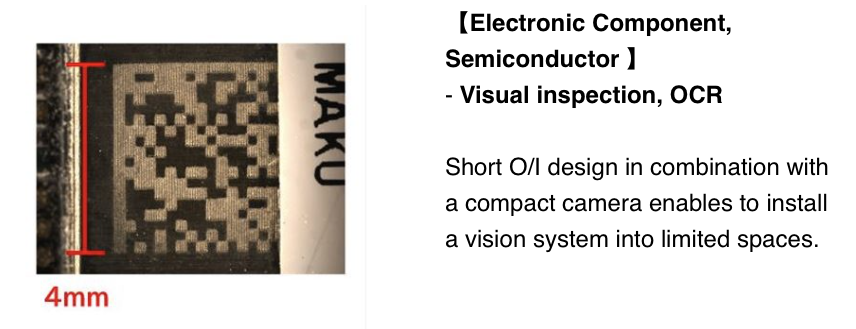

Embedded Vision







ODEL NO.OPT. MAG.COAXIALWDO/IDIMENSIONMAX SENSOR
VS-MTC069-150.69x-15mm55㎜φ15 x L=35mm1/2.9"Available in 2019/Q4
VS-MTC1-151.0x-15mm50mmφ14 x L=30mm1/2.9"
VS-MTC2-152.0x-15mm55㎜φ14 x L=35mm1/2.9"Available in 2019/Q4
