VS-TC06-170
Compact size and light weight
Wide range of WD from 40mm～340mm
Variety of magnifications 0.5x～10x : 1.5x / 3.0x / 5.0x also available
Built-in Co-axial models ( model number : VS-TCxx-xxCO )
VS-TC06-170
| Object-side telecentric lens Long WD series | ||
|---|---|---|
| Model | VS-TC06-170 | |
| Optical mag. | x0.6 ±5% | |
| FOV (VxH) | 1/3" | 6.0x8.0mm |
| WD | 172.7mm ±5 | |
| O/I (Object & Imager distance) | 286.1mm | |
| Working F/# | 30 | |
| NA | 0.01 | |
| Resolution *at λ550nm | 33.5μ | |
| DOF at PCoC φ0.04mm | 6.7mm | |
| TV distortion (max.) | 0.001 | |
| Relative illuminance(Y=3) | 0.95 | |
| Wavelength | Visible (400nm - 700nm) | |
| Camera mount | C-mount | |
| Flange back | 17.526mm | |
| Sensor size (max.) | 1/3" | |
| Co-axial prism | - | |
| Weight (approx.) | 53.0g | |

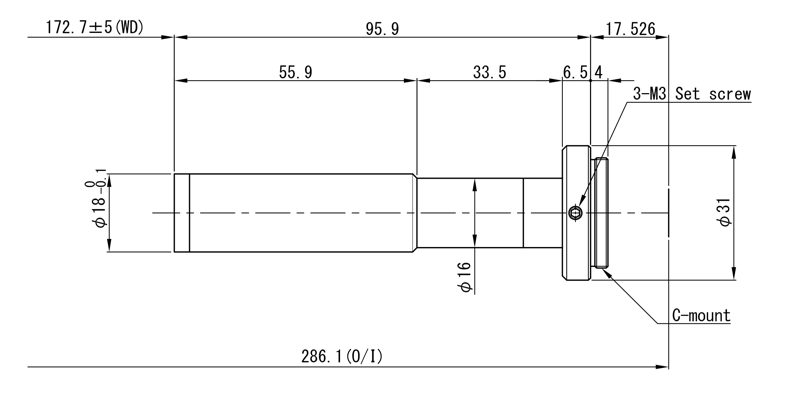

| Dimension | φ31(MAX) x L=95.9mm |
