VS-TC08-120
- Compact size and light weight
- Wide range of WD from 40mm～340mm
- Variety of magnifications 0.5x～10x : 1.5x / 3.0x / 5.0x also available
- Built-in Co-axial models
| Model | VS-TC08-120 | |
|---|---|---|
| Optical mag. | x0.8 ±5% | |
| FOV (VxH) | 1/2" | 6.0x8.0mm |
| 1/3" | 4.5x6.0mm | |
| WD | 122.5mm ±3 | |
| O/I (Object & Imager distance) | 211.8mm | |
| Working F/# | 18 | |
| NA | 0.022 | |
| Resolution *at λ550nm | 15.3μ | |
| DOF at PCoC φ0.04mm | 2.3mm | |
| TV distortion (max.) | 0.001 | |
| Relative illuminance(Y=4) | 0.9 | |
| Wavelength | Visible (400nm - 700nm) | |
| Camera mount | C-mount | |
| Flange back | 17.526mm | |
| Sensor size (max.) | 1/2" | |
| Co-axial prism | - | |
| Weight (approx.) | 41.0g | |

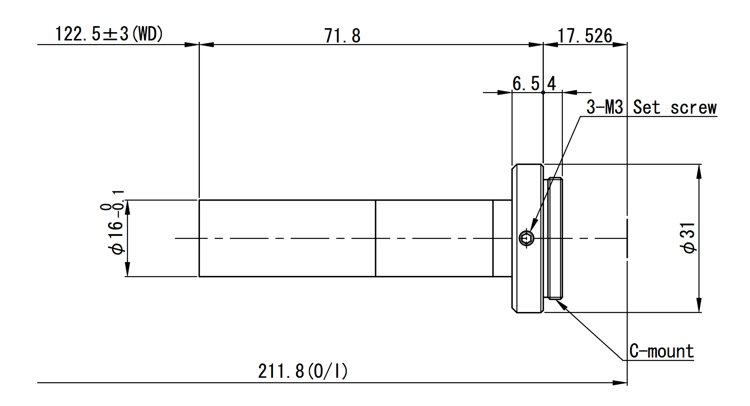

| Dimension | φ31(MAX) x L=71.8mm |
