VS-TC1-150
- Compact size and light weight
- Wide range of WD from 40mm～340mm
- Variety of magnifications 0.5x～10x : 1.5x / 3.0x / 5.0x also available
- Built-in Co-axial models
| Model | VS-TC1-150 | |
|---|---|---|
| Optical Mag. | × 1.0 ±5% | |
| 2/3" | - | |
| FOV (VxH) | 1/2" | 4.8 x 6.4 mm |
| 1/3" | 3.6 x 4.8 mm | |
| WD | 156.2 mm ± 5 | |
| O/I (Object & Imager Distance) | 306.2 mm | |
| Working F/# | 12.98 | |
| NA | 0.038 | |
| Resolution *at λ550nm | 8.39 μ | |
| DOF at PCoC φ0.04mm | 1 mm | |
| TV distortion (max.) | 0.0001 | |
| Relative illuminance(Y=4) | 0.99 | |
| Wavelength | Visible (400nm - 700nm) | |
| Camera Mount | C-mount | |
| Flange Back | 17.526 mm | |
| Sensor size (max.) | 1/2" | |
| Co-axial prism | - | |
| Weight (approx.) | 73 g | |

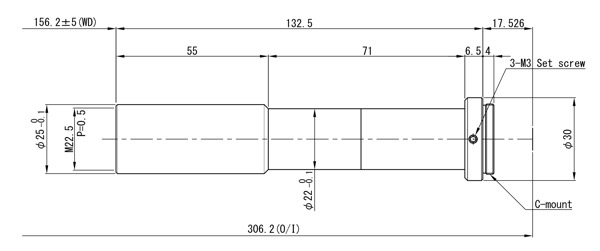

| Dimension | Φ 30 (MAX) × L= 132.5 mm |
