VS-TC1.5N-110CO
- Compact size and light weight
- Wide range of WD from 40mm～340mm
- Variety of magnifications 0.5x～10x : 1.5x / 3.0x / 5.0x also available
- Built-in Co-axial models
| Model | VS-TC1.5N-110CO | |
|---|---|---|
| Optical mag. | x1.5 ±5% | |
| 2/3" | 4.4x5.9mm | |
| FOV (VxH) | 1/2" | 3.2x4.3mm |
| 1/3" | 2.4x3.2mm | |
| WD | 112.0mm ±3 | |
| O/I (Object & Imager distance) | 209.9mm | |
| Working F/# | 18.8 | |
| NA | 0.04 | |
| Resolution *at λ550nm | 8.4μ | |
| DOF at PCoC φ0.04mm | 0.7mm | |
| TV distortion (max.) | 0.0002 | |
| Relative illuminance(Y=5.5) | 0.91 | |
| Wavelength | Visible (400nm - 700nm) | |
| Camera mount | C-mount | |
| Flange back | 17.526mm | |
| Sensor size (max.) | 1/2" | |
| Co-axial prism | Built-in | |
| Weight (approx.) | 49.0g | |

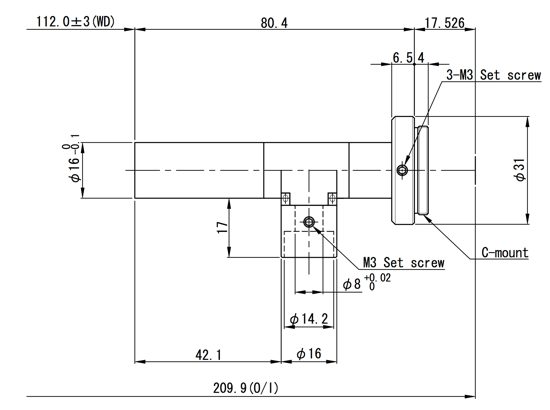

| Dimension | φ31(MAX) x L=80.4mm |
