VS-TC10-65
- Compact size and light weight
- Wide range of WD from 40mm～340mm
- Variety of magnifications 0.5x～10x : 1.5x / 3.0x / 5.0x also available
- Built-in Co-axial models
| Model | VS-TC10-65 | |
|---|---|---|
| Optical Mag. | × 10.0 ±5% | |
| FOV (VxH) | 2/3" | 0.66 × 0.88 mm |
| 1/2" | 0.48 × 0.64 mm | |
| 1/3" | 0.36 × 0.48 mm | |
| WD | 64.8 mm ± 2 | |
| O/I (Object & Imager Distance) | 192.7 mm | |
| Working F/# | 73.2 | |
| NA | 0.068 | |
| Resolution *at λ550nm | 4.9 μ | |
| DOF at PCoC φ0.04mm | 0.06 mm | |
| TV distortion (max.) | 0.00 % | |
| Relative illuminance(Y=5.5) | 100 % | |
| Wavelength | Visible (400nm - 700nm) | |
| Camera Mount | C-mount | |
| Flange Back | 17.526 mm | |
| Sensor size (max.) | 2/3" | |
| Co-axial prism | - | |
| Weight (approx.) | 50 g | |

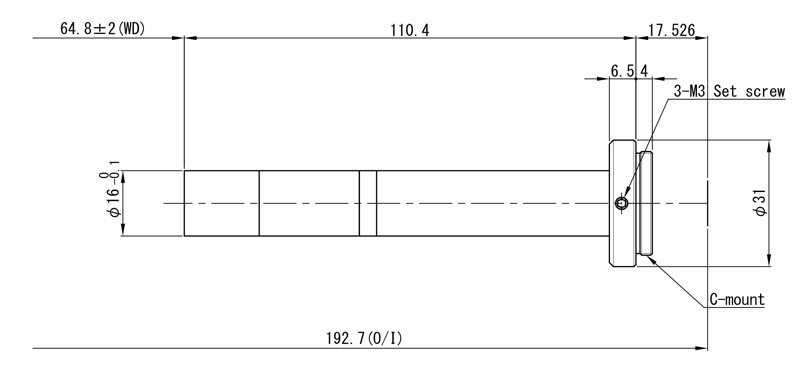

| Dimension | Φ 31 (MAX) × L= 110.4 mm |
