VS-TC10-65CO
- Compact size and light weight
- Wide range of WD from 40mm～340mm
- Variety of magnifications 0.5x～10x : 1.5x / 3.0x / 5.0x also available
- Built-in Co-axial models
| Model | VS-TC10-65CO | |
|---|---|---|
| Optical Mag. | × 10.0±5% | |
| FOV (VxH) | 2/3" | 0.66x0.88 mm |
| 1/2" | 0.48x0.64 mm | |
| 1/3" | 0.36x0.48 mm | |
| WD | 64.8 ±2mm | |
| O/I (Object & Imager Distance) | 192.7 mm | |
| Working F/# | 73.2 | |
| NA | 0.068 | |
| Resolution *at λ550nm | 4.9μ | |
| DOF at PCoC φ0.04mm | 0.06mm | |
| TV distortion (max.) | 0.00 % | |
| Relative illuminance(Y=5.5) | 100 % | |
| Wavelength | Visible (400nm - 700nm) | |
| Camera Mount | C-mount | |
| Flange Back | 17.526 mm | |
| Sensor size (max.) | 2/3" | |
| Co-axial prism | Built-in | |
| Weight (approx.) | 59g | |

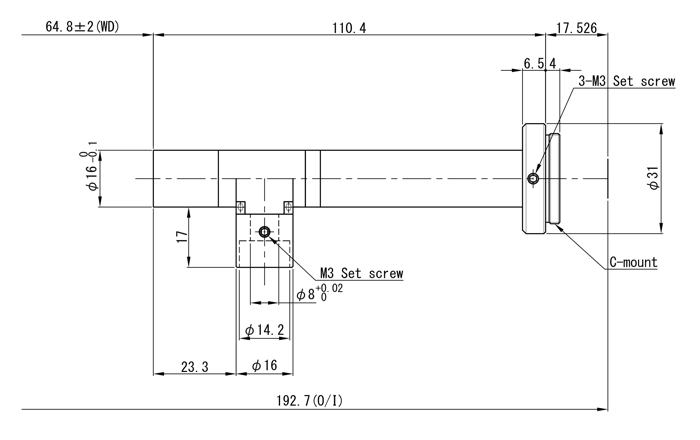

| Dimension | Φ 31 (MAX) × L = 110.4mm |
