VS-TC2-220CO
Compact size and light weight
Wide range of WD from 40mm～340mm
Variety of magnifications 0.5x～10x : 1.5x / 3.0x / 5.0x also available
Built-in Co-axial models ( model number : VS-TCxx-xxCO )
VS-TC2-220CO
| Object-side telecentric lens Super Long WD series | ||
|---|---|---|
| Model | VS-TC2-220CO | |
| Optical mag. | x2.0 ± 5% | |
| 1/2" | 2.4x3.2mm | |
| FOV (VxH) | ||
| 1/3" | 1.8x2.4mm | |
| WD | 220.0mm ± 10 | |
| O/I (Object & Imager distance) | 400.8mm | |
| Working F/# | 20 | |
| NA | 0.05 | |
| Resolution *at λ550nm | 6.7μ | |
| DOF at PCoC φ0.04mm | 0.4mm | |
| TV distortion (max.) | 0.001 | |
| Relative illuminance(Y=4) | 0.9 | |
| Wavelength | Visible (400nm - 700nm) | |
| Camera mount | C-mount | |
| Flange back | 17.526mm | |
| Sensor size (max.) | 1/2" | |
| Co-axial prism | Built-in | |
| Weight (approx.) | 272g | |

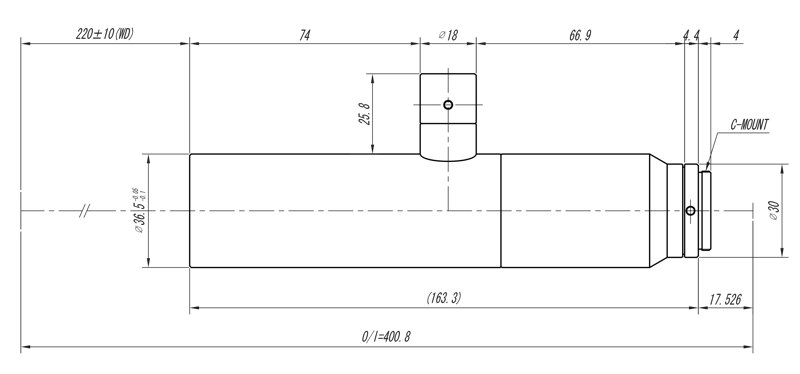

| Dimension | φ36.5(MAX) x L=163.3mm |
