VS-TC6-220CO
Compact size and light weight
Wide range of WD from 40mm～340mm
Variety of magnifications 0.5x～10x : 1.5x / 3.0x / 5.0x also available
Built-in Co-axial models ( model number : VS-TCxx-xxCO )
VS-TC6-220CO
| Object-side telecentric lens Super Long WD series | ||
|---|---|---|
| Model | VS-TC6-220CO | |
| Optical mag. | x6.0 ±5% | |
| 1/2" | 0.8x1.1mm | |
| FOV (VxH) | ||
| 1/3" | 0.6x0.8mm | |
| WD | 221.3mm ±10 | |
| O/I (Object & Imager distance) | 404.1mm | |
| Working F/# | 44.1 | |
| NA | 0.068 | |
| Resolution *at λ550nm | 4.9μ | |
| DOF at PCoC φ0.04mm | 0.1mm | |
| TV distortion (max.) | 0.001 | |
| Relative illuminance(Y=4) | 0.9 | |
| Wavelength | Visible (400nm - 700nm) | |
| Camera mount | C-mount | |
| Flange back | 17.526mm | |
| Sensor size (max.) | 1/2" | |
| Co-axial prism | Built-in | |
| Weight (approx.) | 390g | |

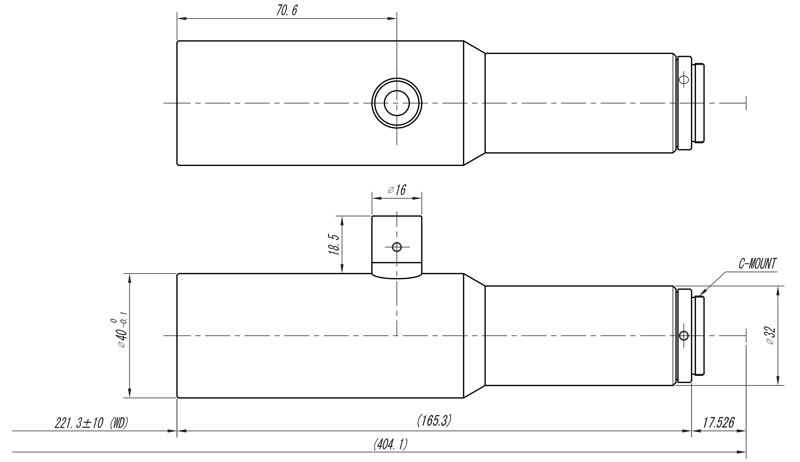

| Dimension | φ40(MAX) x L=165.3mm | |
