VS-TEC04/S
- For 5 Megapixel sensor (2/3”)
- Improved distortion and brightness
- Changeable Magnification and Iris (Fixed models available)
- For wide range of applications / inspection of electronic parts, semiconductor manufacturing equipment etc.
| Model | VS-TEC04/S | |
|---|---|---|
| Optical mag. | 0.4x | |
| 2/3" | 16.5 x 22.0mm | |
| FOV(VxH) | 1/2" | 12.0 x 16.0mm |
| 1/3" | 9.0 x 12.0mm | |
| WD | 147.8mm ± 4 | |
| O/I (Object & Imager distance) | 289.3mm | |
| Working F/# | 5 | |
| NA | 0.04 | |
| Resolution *at λ550nm | 8.39μ | |
| DOF at PCoC φ0.04mm | 2.5mm | |
| TV distortion (max.) | -0.0003 | |
| Relative illuminance(2/3") | 0.98 | |
| Wavelength | Visible (400nm - 700nm) | |
| Camera mount | C-mount | |
| Flange back | 17.526mm | |
| Sensor size (max.) | 2/3" | |
| Filter thread | M43 P=0.75 | |
| Weight (approx.) | g | |

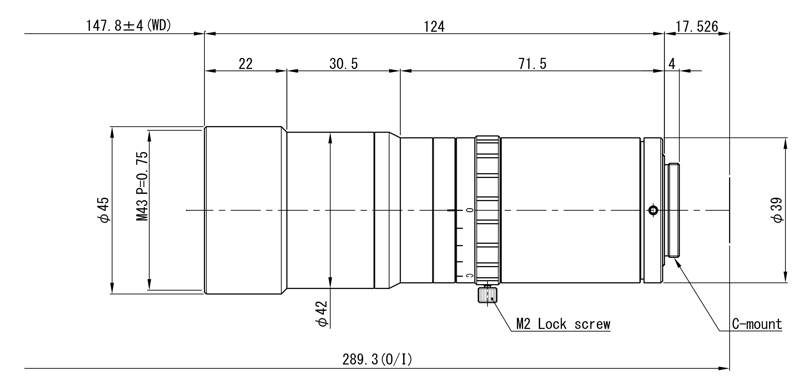

| Dimension | φ45(MAX) x L=124mm |
