VS-TEC05
- For 5 Megapixel sensor (2/3”)
- Improved distortion and brightness
- Changeable Magnification and Iris (Fixed models available)
- For wide range of applications / inspection of electronic parts, semiconductor manufacturing equipment etc.
| Model | VS-TEC05 | |
|---|---|---|
| Optical mag. | x0.5 ± 5% | |
| 2/3" | 13.2 x 17.6mm | |
| FOV(VxH) | 1/2" | 9.6 x 12.8mm |
| 1/3" | 7.2 x 9.6mm | |
| WD | 171.4mm ± 5 | |
| O/I (Object & Imager distance) | 269.9mm | |
| Working F/# | 5.27 | |
| NA | 0.047 | |
| Resolution *at λ550nm | 7.1μ | |
| DOF at PCoC φ0.04mm | 1.7mm | |
| TV distortion (max.) | 0.0003 | |
| Relative illuminance(Y=5.5) | 0.981 | |
| Wavelength | Visible (400nm - 700nm) | |
| Camera mount | C-mount | |
| Flange back | 17.526mm | |
| Sensor size (max.) | 2/3" | |
| Co-axial prism | - | |
| Weight (approx.) | 85g | |

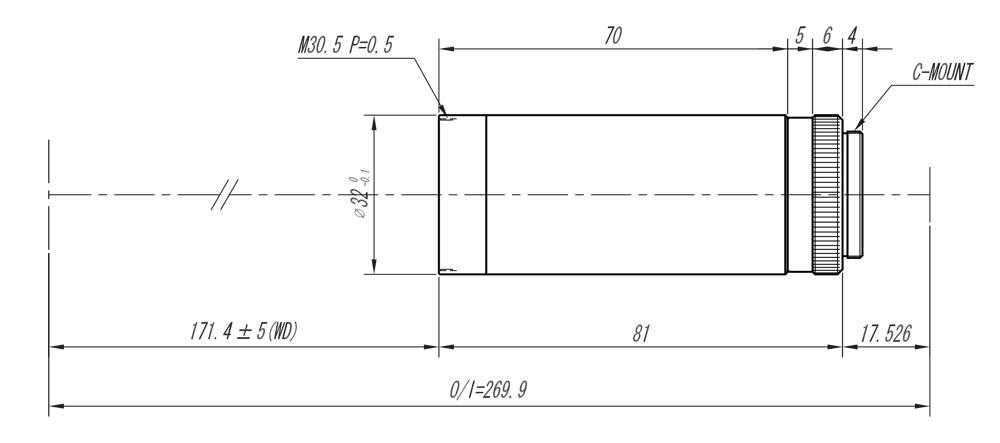

| Dimension | φ32 x L=81mm |
