VS-TEC0513
- For 5 Megapixel sensor (2/3”)
- Improved distortion and brightness
- Changeable Magnification and Iris (Fixed models available)
- For wide range of applications / inspection of electronic parts, semiconductor manufacturing equipment etc.
| Model | VS-TEC0513 | |||
|---|---|---|---|---|
| Optical mag. range | x0.5~x1.3 | |||
| Optical mag. | x0.5 | x0.75 | x1.3 | |
| 2/3" | 13.2x17.6mm | 8.8x11.7mm | 5.1x6.8mm | |
| FOV(VxH) | 1/2" | 9.6x12.8mm | 6.4x8.5mm | 3.7x4.9mm |
| 1/3" | 7.2x9.6mm | 4.8x6.4mm | 2.8x3.7mm | |
| WD | 171.7mm | 130.7mm | 95.9mm | |
| O/I (Object & Imager distance) | 270.2mm | 244.3mm | 243.5mm | |
| Working F/# | 5.27 | 6.8 | 10.18 | |
| NA | 0.047 | 0.055 | 0.064 | |
| Resolution *at λ550nm | 7μ | 6μ | 5.2μ | |
| DOF at PCoC φ0.04mm | 1.7mm | 1mm | 0.5mm | |
| TV distortion (max.) | 0.0003 | 0.0002 | 0.0001 | |
| Relative illuminance(Y=5.5) | 0.981 | 0.984 | 0.993 | |
| Wavelength | Visible (400nm - 700nm) | |||
| Camera mount | C-mount | |||
| Flange back | 17.526mm | |||
| Sensor size (max.) | 2/3" | |||
| Co-axial prism | - | |||
| Weight (approx.) | 260g | |||

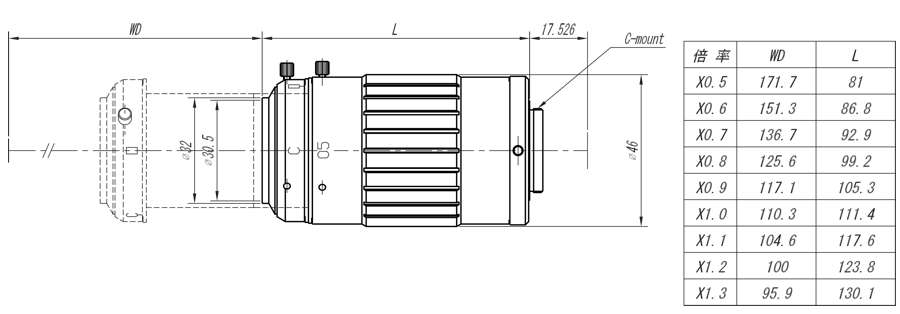

| Dimension | φ46(MAX) x L=81mm | φ46(MAX) x L=96.1mm | φ46(MAX) x L=130.1mm |
