VS-TEC065
- For 5 Megapixel sensor (2/3”)
- Improved distortion and brightness
- Changeable Magnification and Iris (Fixed models available)
- For wide range of applications / inspection of electronic parts, semiconductor manufacturing equipment etc.
| Model | VS-TEC065 | |
|---|---|---|
| Optical mag. | ×0.65 ± 5% | |
| 2/3" | 10.2 × 13.5mm | |
| FOV(VxH) | 1/2" | 7.4 × 9.8mm |
| 1/3" | 5.5 × 7.4mm | |
| WD | 142.9 mm ± 4 | |
| O/I (Object & Imager distance) | 250.6mm | |
| Working F/# | 6.18 | |
| NA | 0.053 | |
| Resolution *at λ550nm | 6.38μ | |
| DOF at PCoC φ0.04mm | 1.2mm | |
| TV distortion (max.) | 0.02 % | |
| Relative illuminance(Y=5.5) | 97.0 % | |
| Wavelength | Visible (400nm - 700nm) | |
| Camera mount | C-mount | |
| Flange back | 17.526 mm | |
| Sensor size (max.) | 2/3" | |
| Co-axial prism | - | |
| Weight (approx.) | 90.0 g | |

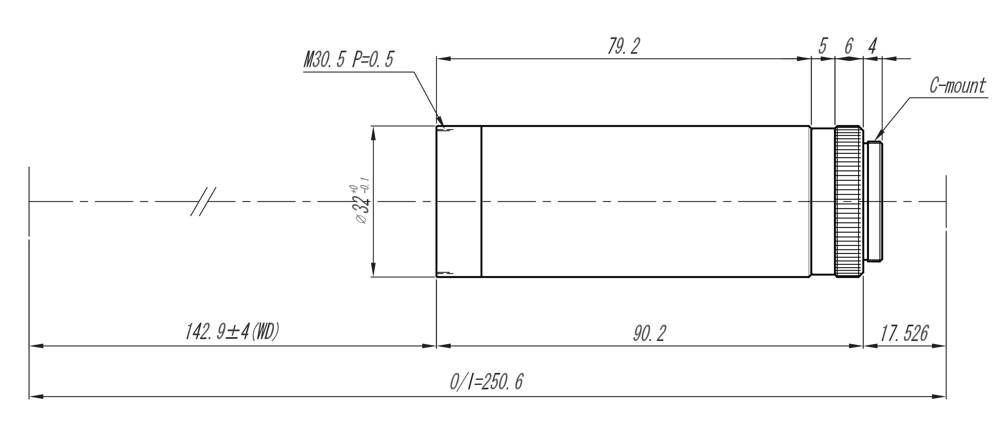

| Dimension | Φ 32 (MAX) × L= 90.2 mm |
