VS-TEC15
- For 5 Megapixel sensor (2/3”)
- Improved distortion and brightness
- Changeable Magnification and Iris (Fixed models available)
- For wide range of applications / inspection of electronic parts, semiconductor manufacturing equipment etc.
| Model | VS-TEC15 | |
|---|---|---|
| Optical mag. | x1.5 ± 5% | |
| 2/3" | 4.4 x 5.9mm | |
| FOV(VxH) | 1/2" | 3.2 x 4.3mm |
| 1/3" | 2.4 x 3.2mm | |
| WD | 89.3mm ± 3 | |
| O/I (Object & Imager distance) | 249.5mm | |
| Working F/# | 11.44 | |
| NA | 0.066 | |
| Resolution *at λ550nm | 5.1μ | |
| DOF at PCoC φ0.04mm | 0.4mm | |
| TV distortion (max.) | 0.0002 | |
| Relative illuminance(Y=5.5) | 0.993 | |
| Wavelength | Visible (400nm - 700nm) | |
| Camera mount | C-mount | |
| Flange back | 17.526mm | |
| Sensor size (max.) | 2/3" | |
| Co-axial prism | - | |
| Weight (approx.) | 115g | |

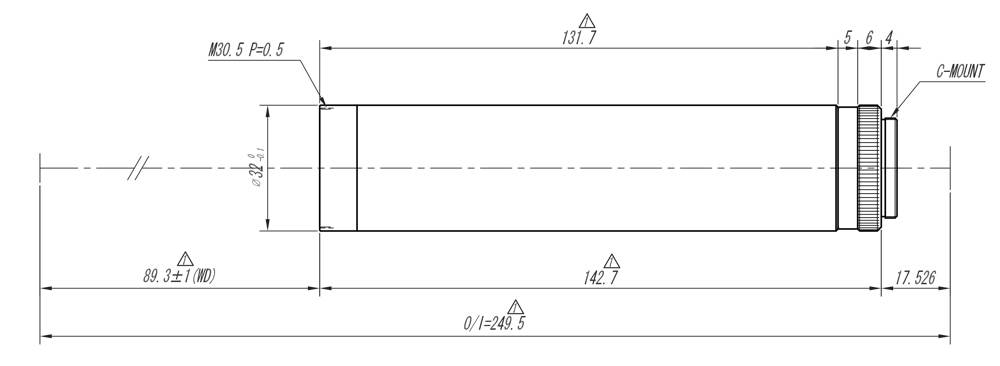

| Dimension | φ32 x L=142.7mm |
