VS-THV Series

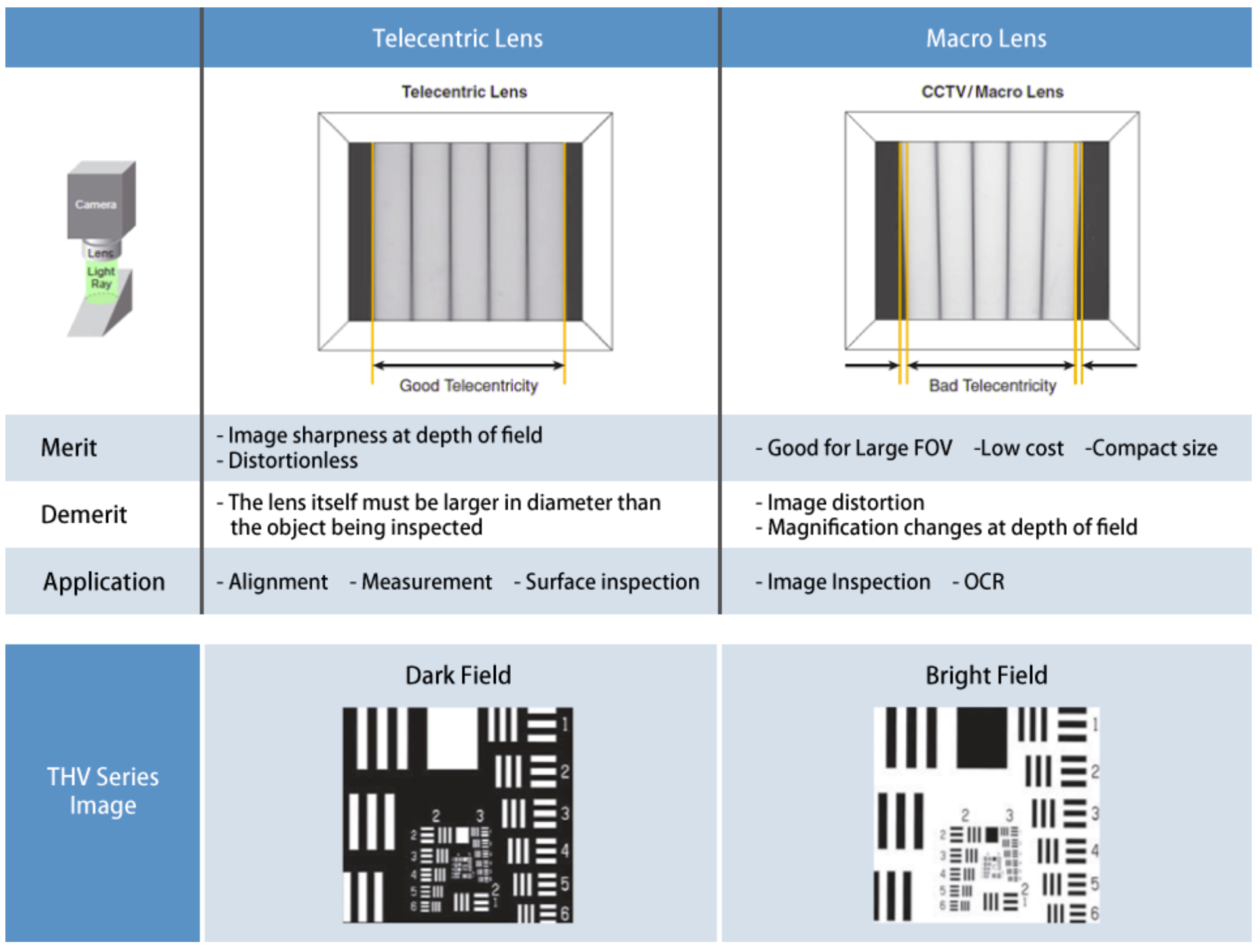

This series of lens supports 4 to 9-megapixel 1" format sensor cameras. It has a variable aperture which allows DOF and contrast adjustment. Straight and Co-axial models are available. The series boasts a distortion-less design with Compact models

Main  >  Product  >  Machine Vision Lenses  >Telecentric Lens  > VS-THV Series
Model NameOpt. Mag.WD(mm)Working F/#NA
VS-THV05-110/S0.5x112.210.00.025
VS-THV05-110CO/S0.5x112.210.00.025
VS-THV1-110/S1.0x111.110.50.048
VS-THV1-110CO/S1.0x111.110.50.048
VS-THV1.5-110/S1.5x110.410.00.075
VS-THV1.5-110CO/S1.5x110.410.00.075
VS-THV2-110/S2.0x110.4100.1
VS-THV2-110CO/S2.0x110.4100.1
VS-THV3-110/S3.0x111.212.50.120
VS-THV3-110CO/S3.0x111.212.50.120
VS-THV4-110/S4.0x110.415.40.130
VS-THV4-110CO/S4.0x110.415.40.130
VS-THV011-220/S0.11x222.55.60.01
