NIT HiPe SenS 640
High-Performance Air-Cooled SWIR camera
Main > Product > SWIR Cameras > SWIR Area Scan Cameras > WiDy SWIR Series > HiPe SenS 640

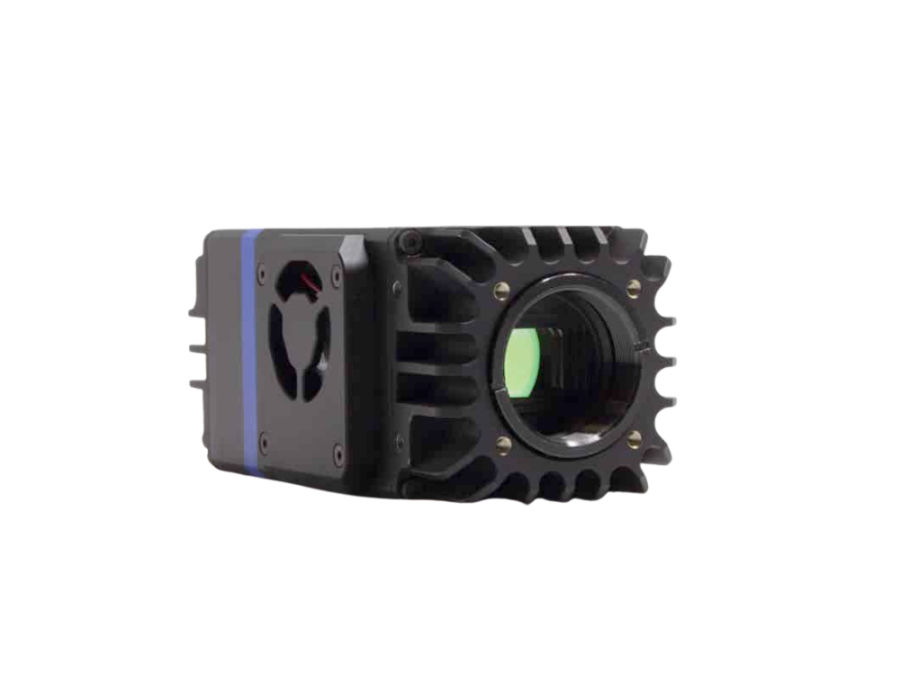

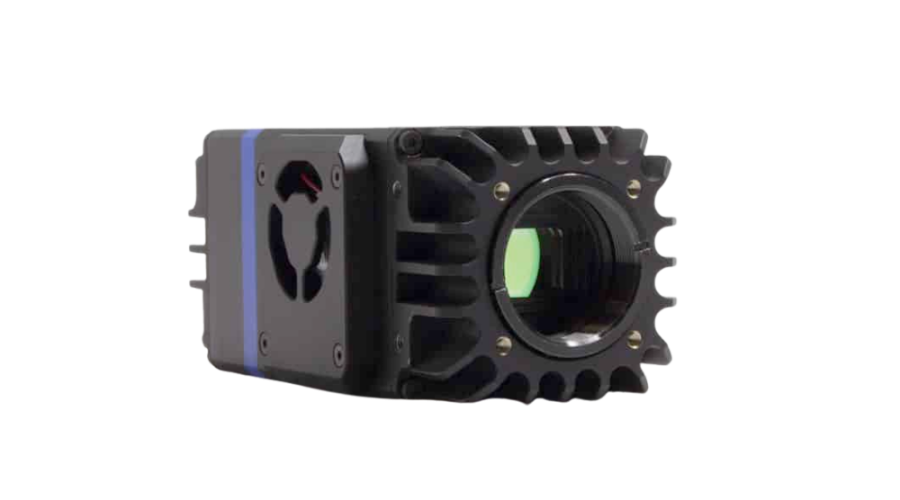

NIT HiPe SenS 640
The Highlight Features
- Low Dark current for Long exposure applications
- VGA resolution – 640x512px @15µm pixel pitch
- USB 3.0 & CameraLink interface
- TEC2 & Fan Air-cooled
- Bad Pixels Replacement and Non-Uniformity Correction (NUC)
| Model Name | HiPe SenS 640 |
|---|---|
| Sensor | NSC1902T-SI |
| Material | InGaAs |
| Resolution | 640x512 |
| Pixel pitch | 15μm |
| Spectral response | 0.9 to 1.7μm |
| Dual response | Linear, 3 gain levels |
| Modes | IWR/ITR, CDS, ROI |
| QE | >85% (90% typical) |
| Output | USB3.0, CameraLink |
| Frame rate | Up to 230fps full frame |
| Partial Reading Mode | Down to 16x16 |
| Exposure time | 10μs to 112sec |
| Sensor noise | <40e- |
| Dark current value | <1500 e-/pixels/s @-20°C |
| Operating mode | TEC2 + Fan air-cooled |
| Trigger | IN/OUT (LVTTL), Selectable delay |
| Power Range | 12V |
| Dimension | 46x57x112mm |
| Mount | C-Mount native |
| Weight | < 215g |
| ADC | 14 bits |
| Operating Temp | -40°C to +65°C |
