NIT WiDy SWIR 640M-SPE
The Highlight Features
- VGA 640×512, Pitch : 15µm
- InGaAs Logarithmic response, Snapshot mode
- Smart Embedded camera
- Gated mode
- Dynamic range : 120dB typical
| Model Name | WiDy SWIR 640M-SPE |
|---|---|
| Optical format | 1 inch |
| Output | Buffered analog differential |
| Active pixel | 640x512 |
| Material | InGaAs |
| QE | >70% (from 900nm – 1.7μm) |
| Pixel size | Square 15 x 15μm |
| Readout mode | Global Shutter |
| Frame rate | Frame Rate : 25Hz, 30Hz, 50Hz, 60Hz, 100Hz User manual Frame Rate selection |
| Dynamic range | Logarithmic response : 120dB typical for Standard snapshot mode (Exposure time >100μs ) Linear response : 70dB typical for Gating mode (Exposure time < 100μs) |
| Power consumption | 2.7W (@12V at ambient) |
| Storage temperature | -40 to 80°C |
| Operation temperature | -40 to 71°C |
| Mount | CS and C |
| Weight | Camera< 160g Module<110g |

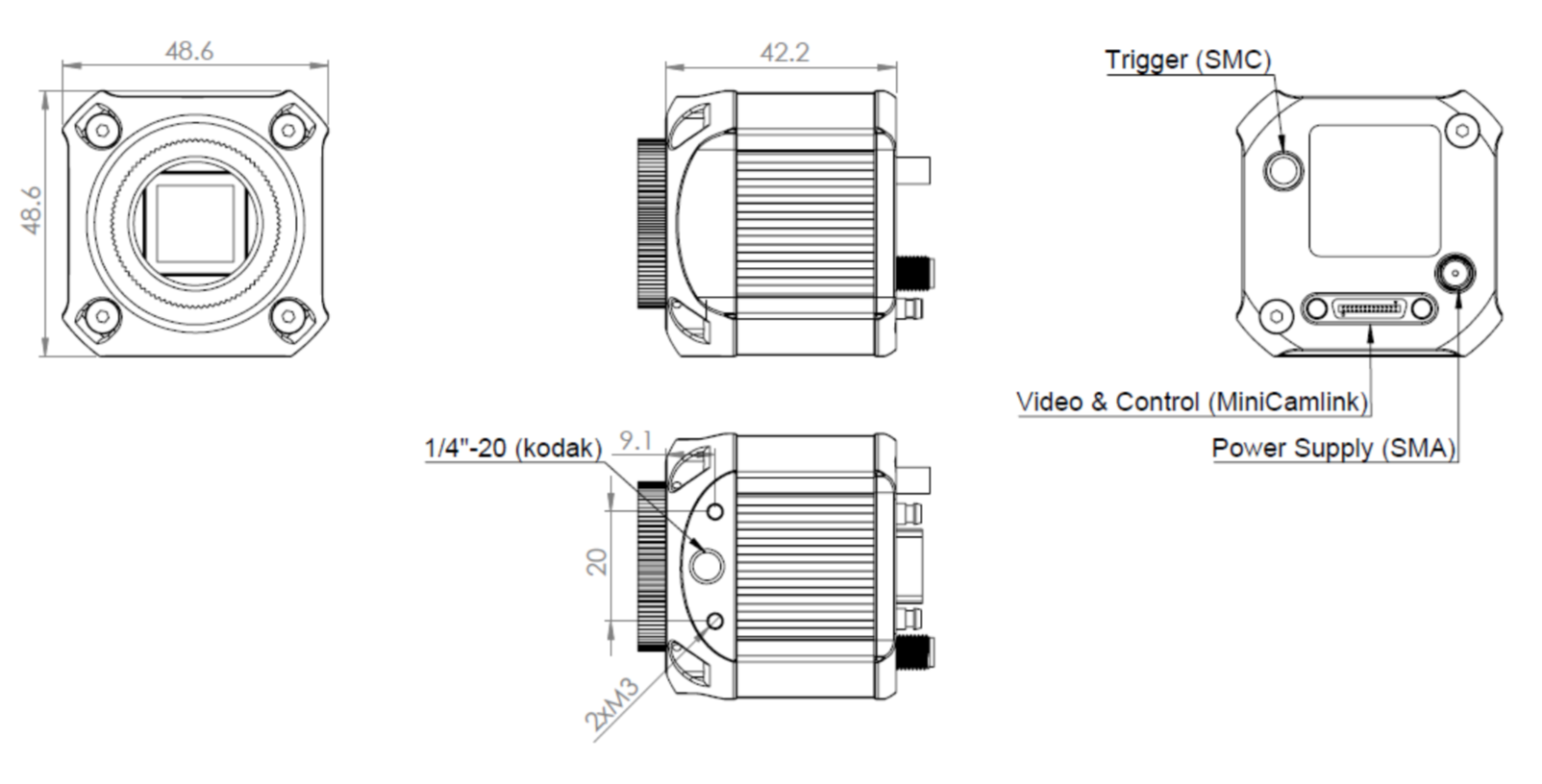

| Dimension | 48.60 x 48.60 x 49.10 |
