SV-0813V
The SV-0813V, a standout in the Compact & Wide Angle Fixed Focal Length Lenses SV-V Series, is crafted for precision imaging. With a focal length of 8mm and a minimum object distance (M.O.D) of 200mm, this lens is ideal for capturing wide-angle shots with clarity. Operating at an impressive Fno of 1.3, the SV-0813V excels in low-light conditions, ensuring high-quality imaging even in challenging environments. Equipped with a C-Mount, this lens is compatible with a range of camera systems, making it a reliable choice for various imaging applications.
| Model | SV-0813V |
|---|---|
| Focal Length (f) | 8 mm |
| Maximum Aperture Ration | 1: 1.3 |
| Aperture | F 1.3 ~ Close |
| Angle of view | 49 x 57.2( Diagonal 72.3) |
| M.O.D | 200 |
| TV Distortion | -1.57% |
| Operation | Manual (Lock screw M1.7) |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526mm |
| Sensor Size(Max) | 2/3" |
| Filter Thread | M27 P=0.5 |
| Weight (Approx) | 47g |

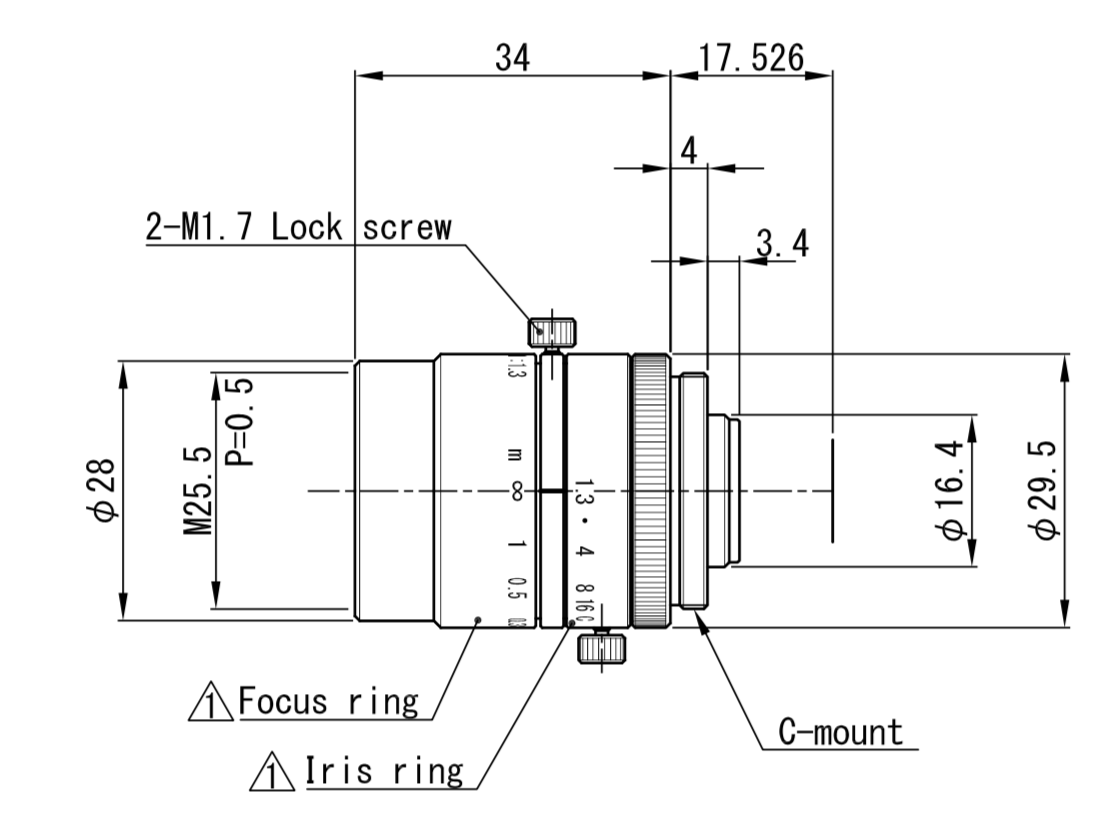

| Dimension | φ29.5(max.) × L =34 mm |
The Extension Ring
| Lens Model | SV-0813V | |||
|---|---|---|---|---|
| Extension Ring (mm) | WD Minimum(mm) | WD Maximum (mm) | Mag @ Min WD | Mag @ Max WD |
| 0.5 | 69.4 | 118.7 | 0.062x | 0.100x |
| 1.0 | 38.3 | 58.3 | 0.124x | 0.163x |
