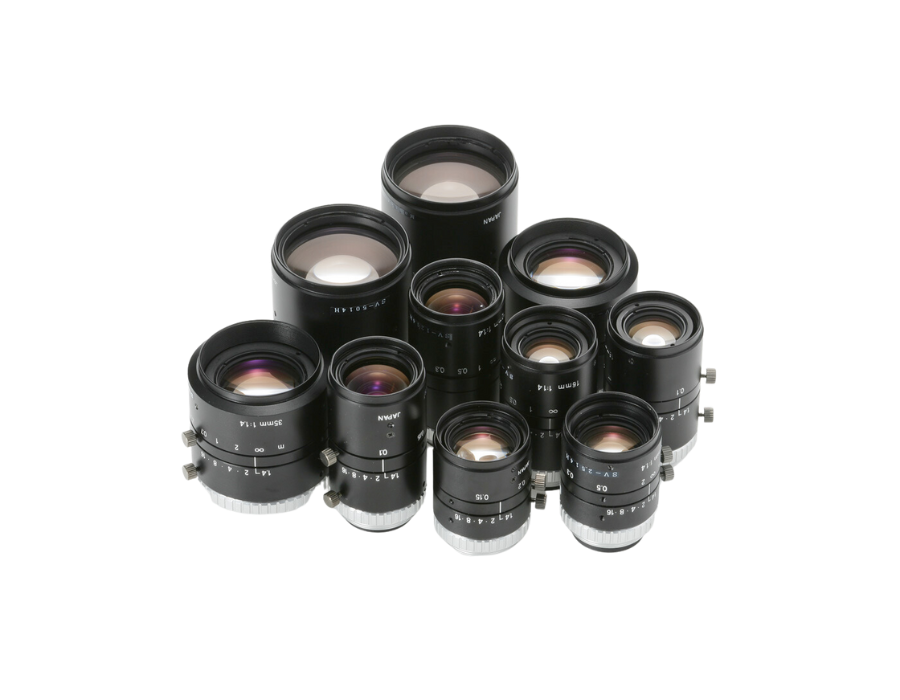

Main > Product > Machine Vision Lenses > Fixed Focal TV Lenses > SV-H Series > SV-0814H
SV-0814H
The SV-0814H is a standout in the Megapixel Fixed Focal Length Lenses category, offering precision imaging with a focal length of 8mm and a minimum object distance (M.O.D) of 100mm. Operating at an impressive Fno range of 1.4 to 16, this lens excels in capturing detailed shots across various lighting conditions. Equipped with a C-Mount, the SV-0814H ensures compatibility with a wide range of camera systems, making it a versatile choice for applications that demand high-quality imaging and flexibility in focal length adjustments.
| Model | SV-0814H |
|---|---|
| Focal Length (f) | 8 mm |
| Maximum Aperture Ration | 1: 1.4 |
| Aperture | F 1.4 ~ 1.6 |
| Angle of view | 47.9° × 55.4( Diagonal 68.8) |
| M.O.D | 100 |
| TV Distortion | 0.10% |
| Operation | Manual (Lock screw M1.7) |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526mm |
| Sensor Size(Max) | 2/3" |
| Filter Thread | M35.5 P=0.5 |
| Weight (Approx) | 124g |

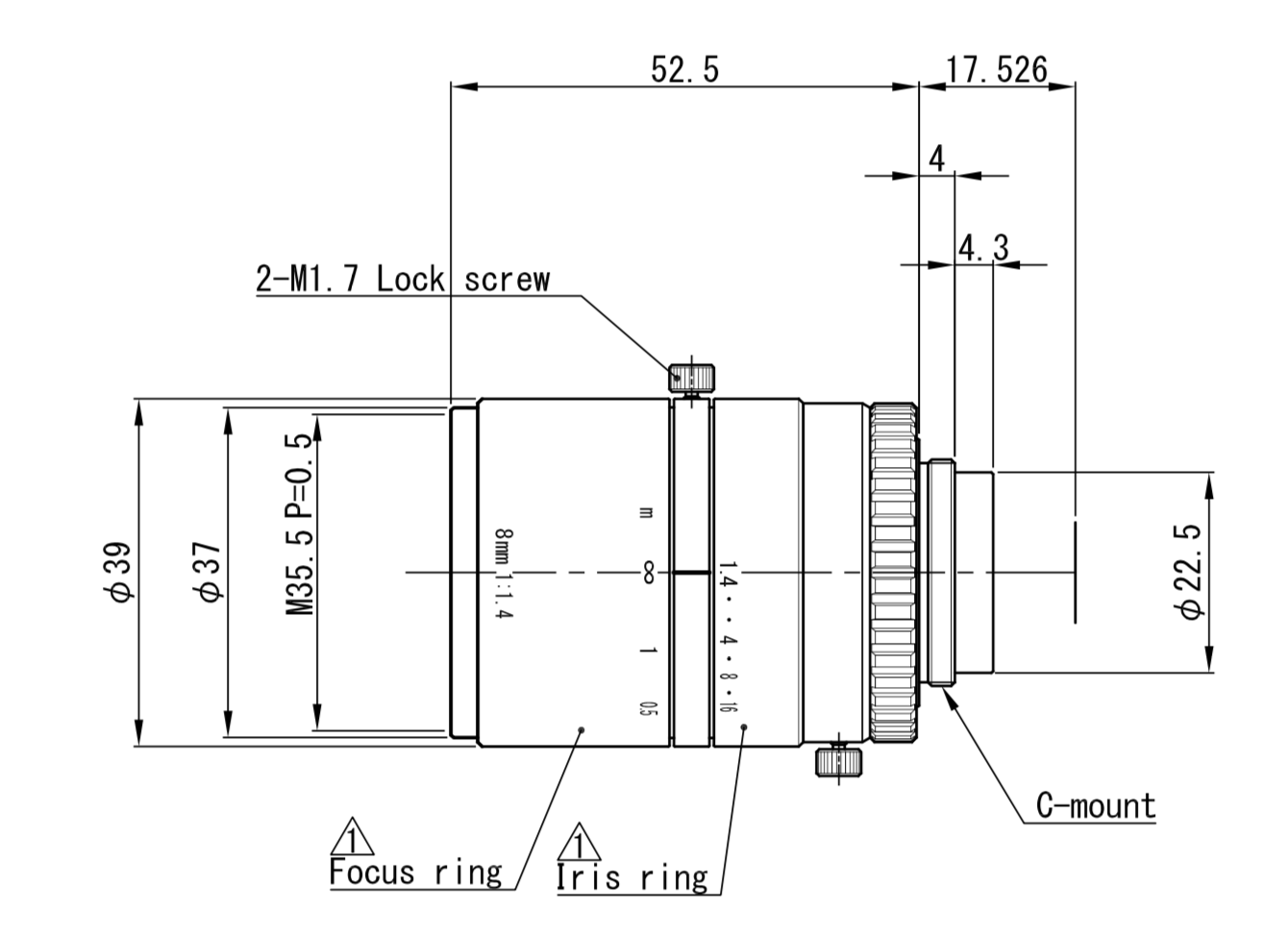

| Dimension | φ39(max.) × L =52.5mm |
The Extension Ring
| Lens Model | SV-0814H | |||
|---|---|---|---|---|
| Extension Ring (mm) | WD Minimum(mm) | WD Maximum (mm) | Mag @ Min WD | Mag @ Max WD |
| 0.5 | 45.7 | 112.5 | 0.063x | 0.133x |
