SV-5026H
The SV-5026H stands out as a compact model within the Megapixel Fixed Focal Length Lenses series, offering precision imaging with a focal length of 16mm and a minimum object distance (M.O.D) of 500mm. With an impressive Fno range of 2.6 to (C), this lens excels in capturing detailed shots in various lighting conditions. Its C-Mount design enhances versatility, ensuring compatibility with a diverse range of camera systems. The SV-5026H is an ideal choice for applications where space efficiency is essential, without compromising on the quality and flexibility required for optimal imaging performance.
| Model | SV-5026H |
|---|---|
| Focal Length (f) | 50 mm |
| Maximum Aperture Ration | 1: 2.6 |
| Aperture | F 2.6 ~ Close |
| Angle of view | 8.1° × 9.6 ( Diagonal 12.5) |
| M.O.D | 500 |
| TV Distortion | 0.01% |
| Operation | Manual (Lock screw M1.7) |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526mm |
| Sensor Size(Max) | 2/3" |
| Filter Thread | M27 P=0.5 |
| Weight (Approx) | 54g |

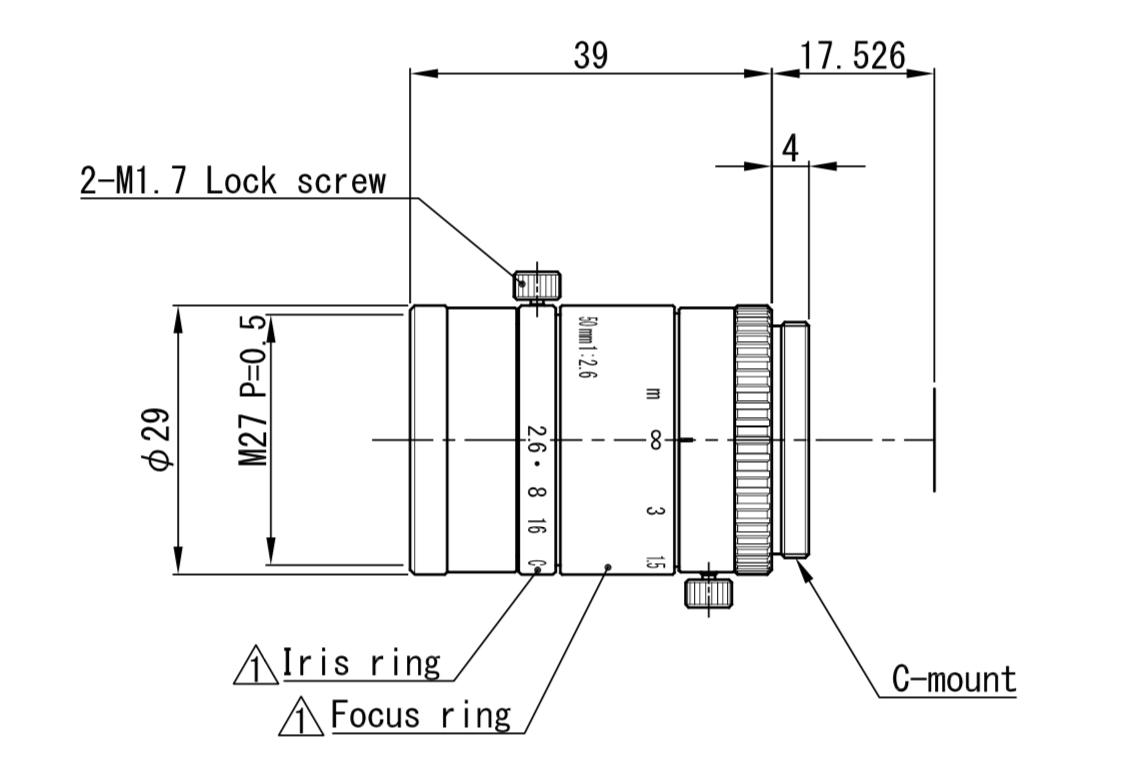

| Dimension | φ29(max.) × L = 39mm |
