SV-7527V
The SV-7527V, a standout in the Compact & Wide Angle Fixed Focal Length Lenses SV-V Series, is crafted for precision imaging. With a focal length of 75mm and a minimum object distance (M.O.D) of 1000mm, this lens is ideal for capturing wide-angle shots with clarity. Operating at an impressive Fno of 2.7, the SV-7527V excels in low-light conditions, ensuring high-quality imaging even in challenging environments. Equipped with a C-Mount, this lens is compatible with a range of camera systems, making it a reliable choice for various imaging applications.
| Model | SV-7527V |
|---|---|
| Focal Length (f) | 75 mm |
| Maximum Aperture Ration | 1: 2.7 |
| Aperture | F 2.7 ~ Close |
| Angle of view | 3.6 x 4.7 ( Diagonal 5.9) |
| M.O.D | 1000 |
| TV Distortion | 0.55% |
| Operation | Manual (Lock screw M1.7) |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526mm |
| Sensor Size(Max) | 1/2" |
| Filter Thread | M30.5 P=0.5 |
| Weight (Approx) | 74g |

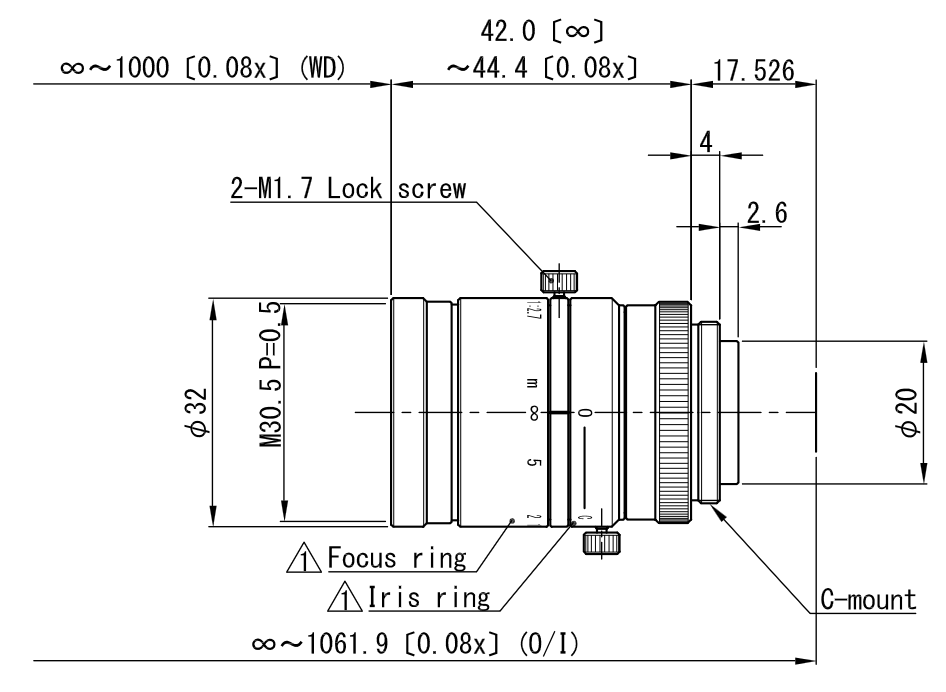

| Dimension | φ32(max.) × L =42mm |
