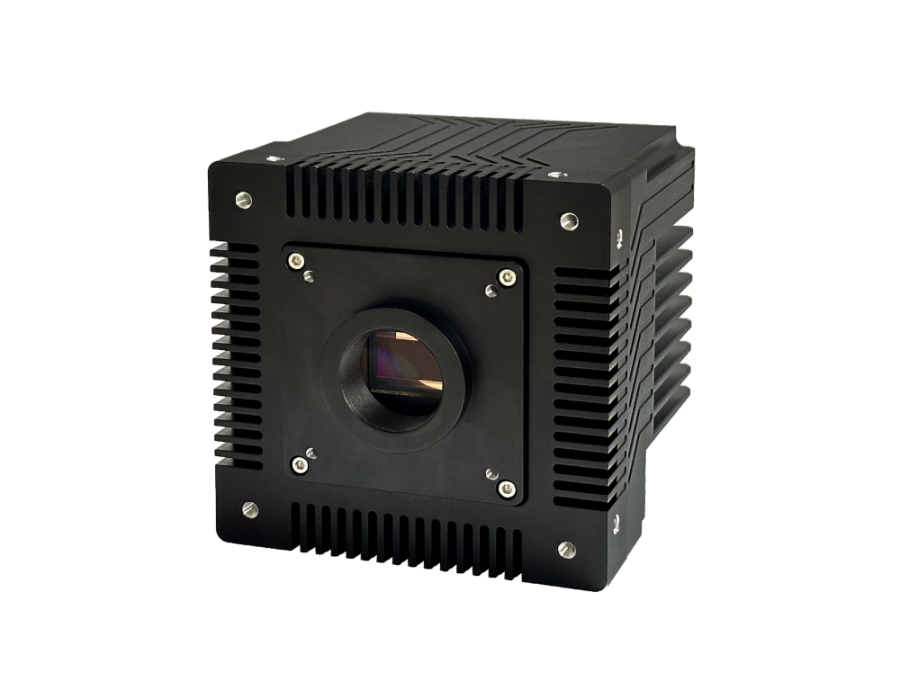

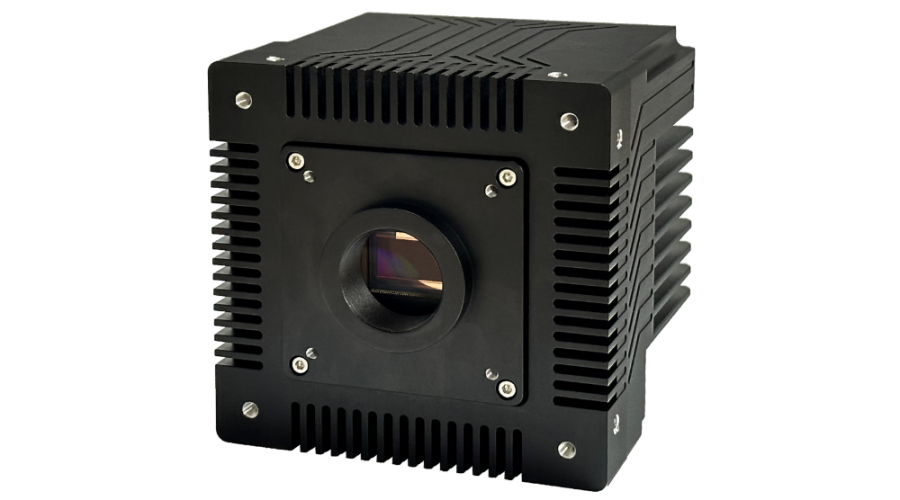

TS10MSFP-366M
Highlight Features
- Global Shutter CMOS Sensor
- Up to 366fps Frame Rate
- High Sensitivity and Low Noise
- Rich Features: LUT,FFC,ROI,etc
| Model | TS10MSFP-366M |
|---|---|
| Description | 10MP 10GigE Mono Area Scan Camera |
| Sensor | Global Shutter CMOS |
| Resolution | 4608 * 2176 |
| Pixel Size | 4.5um |
| Image Mode | Mono |
| Optical Size | 22.93 mm |
| Dynamic Range | ≥48.3 dB |
| Max Frame Rate | 366.7fps |
| Data Format | 8bit |
| Data Rate | 3677 MB/s |
| Exposure Control | External PWM / Timed |
| Exposure Time | 1us~1s (step: 1us) |
| Trigger Mode | Free-Run / External Pulse |
| Trigger Signal | SFP+ Signal / External IO Signal / Software Trigger Signal |
| Analog Gain | 1/1.6/2.5/5X |
| Digital Gain | 0.1-8.0x |
| Data Interface | 10GigE(SFP+) |
| Lens Mount | M42 / C Mount |
| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC20-24V（±10%） 2.0A |
| Power Consumption | 28.1 W |
| Mechanical Dimensions | 99.00mm(W) x 99.00mm(H) x 86.6mm(D) |
| Operation Temperature | 0~55℃ |
| Storage Temperature | -20~75℃ |
