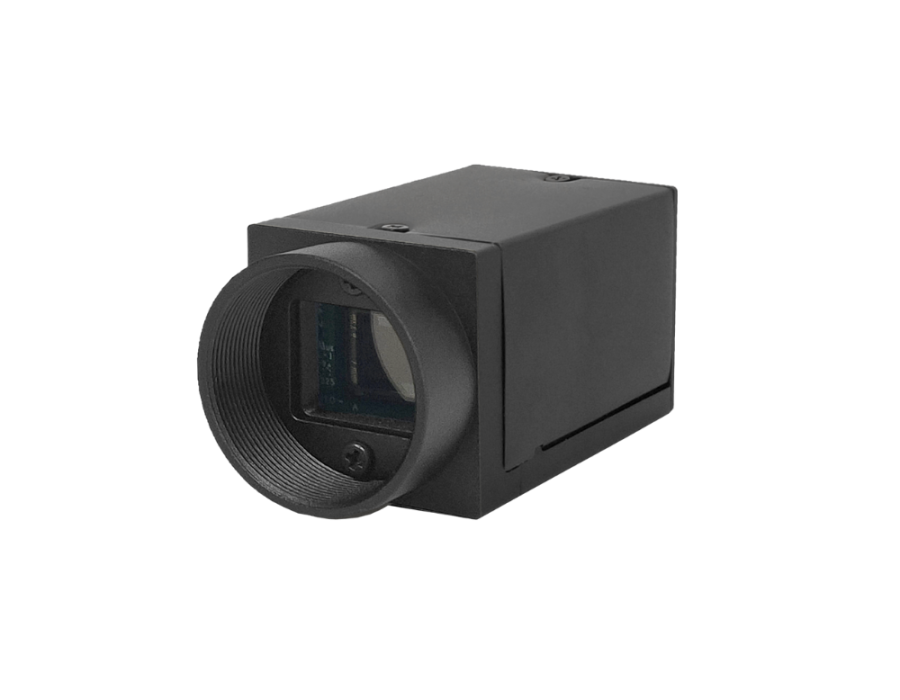

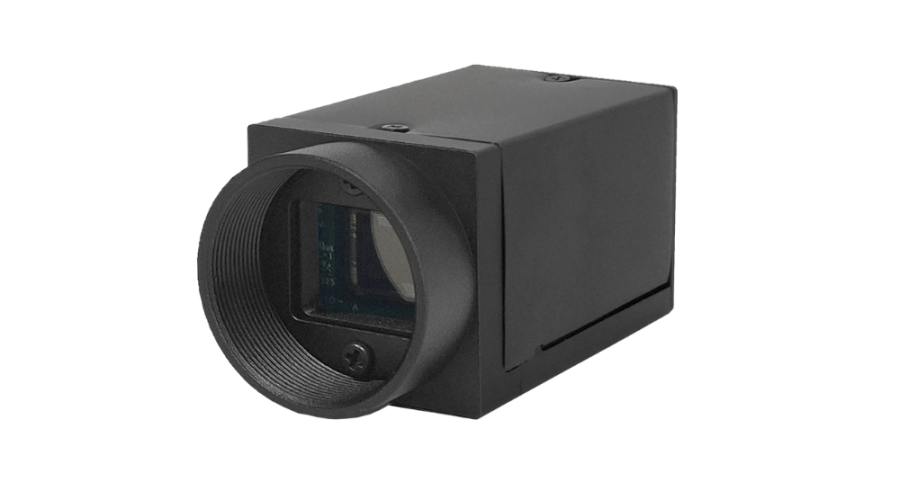

TS12MSU30-30C
Highlight Features
- Global Shutter CMOS
- 4096 * 3000 pixels, 3.45μm * 3.45μm
- Frame rate up to 30fps
- High sensitivity and low noise
| Model | TS12MSU30-30M | TS12MSU30-30C |
|---|---|---|
| Sensor Type | Global Shutter CMOS | |
| Image Mode | Mono | Color |
| Optical Size | 17.52 mm | |
| Resolution | 4096 * 3000 | |
| Pixel Size | 3.45μm * 3.45μm | |
| Max Frame Rate | 11.84fps@8/12bit | |
| Pixel Bit Width | 8/12 bit | |
| Dynamic Range | ≥71.2 dB | |
| Data Rate | 218 MB/s | |
| Trigger Mode | Free run / External trigger | |
| Trigger Source | Software trigger / External IO | |
| Exposure Control | Program / Pulse width | |
| Exposure Time | 28μs-10s(Step:28μs) | |
| Analog Gain | 0-200dB | |
| Digital Gain | 0.1-8.0x | |
| Lens Interface | C Mount | |
| Data Interface | USB3.0 | |
| Power Interface | USB powered | |
| Power Consumption | 2.9W | |
| Dimensions | 35.0mm(W) x 35.0mm(H) x 61.7mm(D) (Without adapter) | |
| Operating Temperature | 0-50℃ | |
| Storage Temperature | -20-75℃ | |
