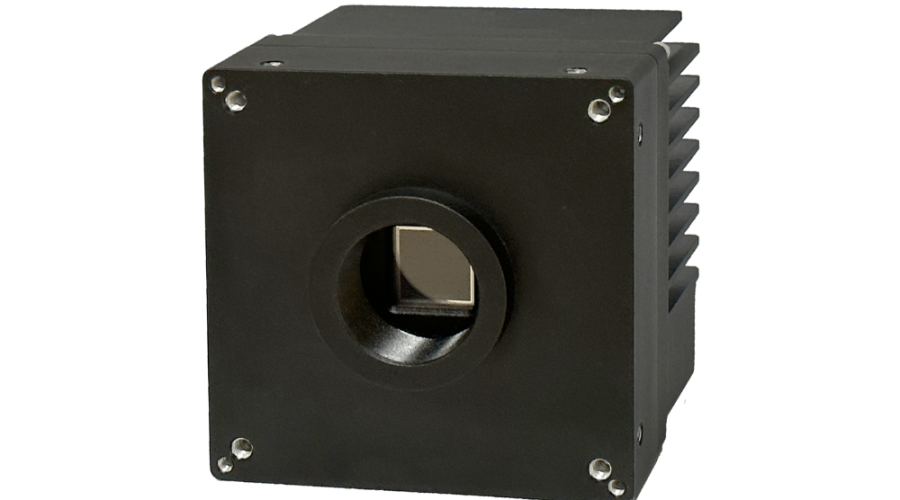

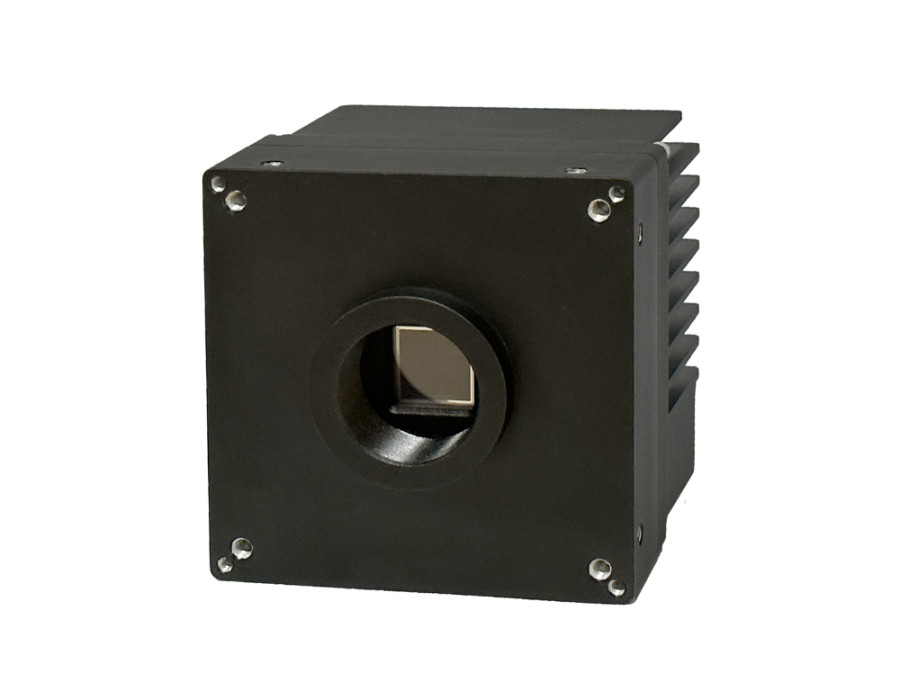

TS25MPXGV-42C
Highlight Features
- Global Shutter CMOS
- 5120 * 5120 pixels, 2.5μm * 2.5μm
- Frame rate up to 41.79fps
- Minimum exposure time 8μs
| Model | TS25MPXGV-42M | TS25MPXGV-42C |
|---|---|---|
| Sensor | GMAX0505 | |
| Sensor Type | Global Shutter CMOS | |
| Image Mode | Mono | Color |
| Optical Size | 18.10 mm | |
| Resolution | 5120 * 5120 | |
| Pixel Size | 2.5μm * 2.5μm | |
| Max Frame Rate | 41.79fps@8bit，22.43fps@10/12bit，30.0fps@10p/12p bit | |
| Bit Depth | Mono8/10/10p/12/12p | Bayer8/10/12 |
| Dynamic Range | ≥62.8 dB | |
| Data Rate | 1179 MB/s | |
| Trigger Mode | Free run / External trigger | |
| Trigger Source | Software trigger / External IO | |
| Exposure Control | Program / Pulse Width | |
| Exposure Time | 8μs -49.99s(step:1μs) | |
| Analog Gain | 1.0/1.2/1.4/1.6/1.8/2.0x | |
| Digital Gain | 0.1-8.0x | |
| Lens Interface | C Mount | |
| Data Interface | 10 GigE Vision | |
| Power Interface | HD15（Female） | |
| Power Supply | DC12-24V(±10%) 1.0A | |
| Power Consumption | 6.6 W | |
| Dimensions | 76.0mm(W) x 76.0mm(H) x 63.4mm(D)(Without adapter) | |
| Operating Temperature | 0-55℃ | |
| Storage Temperature | -20-75℃ | |
