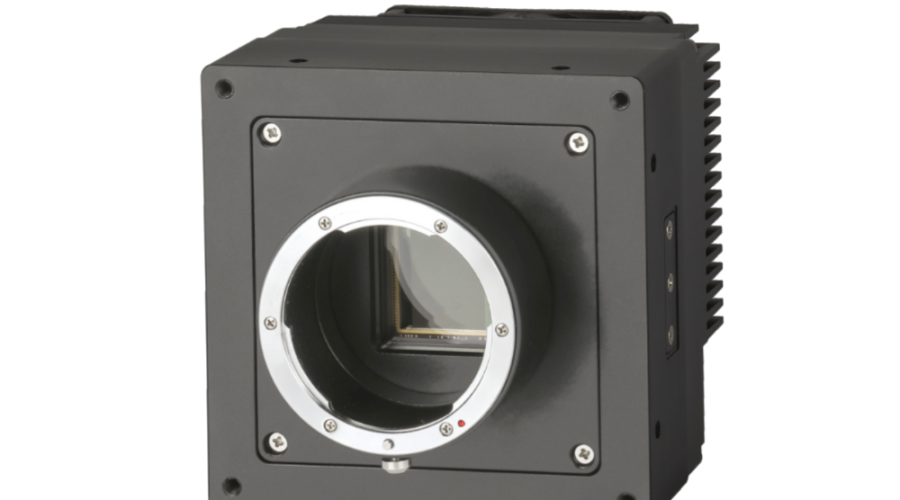

TTS46MGV-5M
Highlight Features
- Rolling Shutter CMOS
- 8192 * 5556 pixels, 2.315μm * 2.315μm
- 2.5fps(5fps with SAccel™)
- High sensitivity and low noise
| Model | TTS46MGV-5M |
|---|---|
| Sensor | IMX492 |
| Sensor Type | Rolling Shutter CMOS |
| Image Mode | Mono |
| Optical Size | 22.91 mm |
| Resolution | 8192 * 5556 |
| Pixel Size | 2.315μm * 2.315μm |
| Max Frame Rate | 2.5fps(5fps with SAccel™) |
| Bit Depth | 8 bit |
| Dynamic Range | ≥53.5 dB |
| Data Rate | 113 MB/s(Uncompressed mode) ; 227MB/s(Compressed mode) |
| Trigger Mode | Free run / External trigger |
| Trigger Source | External IO |
| Exposure Control | Program / Pulse Width |
| Exposure Time | 1406μs-10s |
| Analog Gain | 0-64 |
| Digital Gain | 0.01-8.00x |
| Lens Interface | F Mount / EF Mount |
| Data Interface | GigE Vision |
| Power Interface | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC12V±10% 4.5A |
| Power Consumption | TEC On:35.5W ; TEC Off:10.8W |
| Cooling Mode | Electronic refrigeration(20℃ below environment temperature)/ Fan refrigeration |
| Dimensions | 111.0mm(W) x 111.0mm(H) x 90.5mm(D)(Without adapter) |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
