Alvium 1800 U-120M

Versatile USB camera with AR0135CS sensor

Main  >  Product  >  Area Scan camera  >  USB3 Cameras > Allied Vision USB3 Cameras > Alvium 1800 U -120M

Alvium 1800 U-120M

Alvium USB cameras are designed for use in both machine vision and embedded applications. Offering high image quality and reducing workload for the host, Alvium enables innovation among system designers. The innovative ALVIUM System on Chip (SoC) performs image corrections and preprocessing tasks onboard the camera instead of the host computer. Unlike FPGAs commonly used in machine vision cameras, the ALVIUM SoC is extremely power efficient. With Alvium, integrating hardware and software can be done effortlessly, which ultimately reduces development time. The ON Semi AR0135CS CMOS sensor enables imaging at 1.2 megapixel and 52 frames per second. Color models ship with an IR cut filter, monochrome and S-Mount models ship without a filter or protection glass.

  • AR0135CS CMOS sensor
  • ALVIUM image processing
  • USB3 Vision
  • Various hardware options
Model Alvium 1800 U -120M
InterfaceUSB3 Vision
Resolution1280 (H) × 960 (V)
SensorON Semi AR0135CS
Sensor typeCMOS
Sensor sizeType 1/3
Pixel size3.75 µm × 3.75 µm
Shutter modeGlobal shutter
Max. frame rate at full resolution52 fps at ≥200 MByte/s, Mono8
ADC12 Bit
Image buffer (RAM)256 KB
Non-volatile memory (Flash)1024 KB

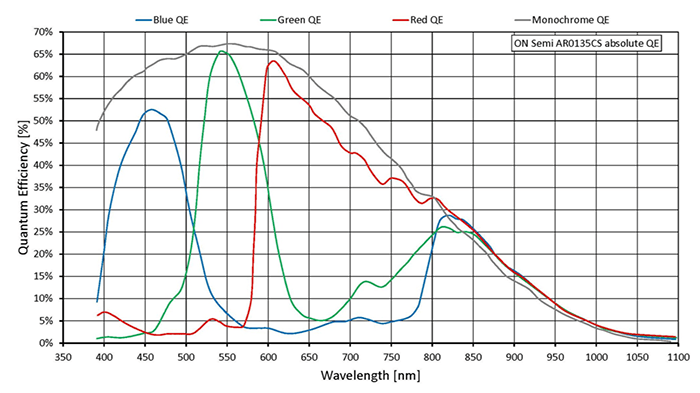

Quantum efficiency at 529 nm69 %
Temporal dark noise6.1 eˉ
Saturation capacity9430 eˉ
Dynamic range63 dB
Absolute sensitivity threshold6.7 eˉ
Bit depthMax. 12 Bit
Monochrome pixel formatsMono8, Mono10, Mono10p, Mono12, Mono12p
TTL I/Os4 programmable GPIOs
Operating temperature+5 °C to +65 °C (housing)
Power requirements (DC)Power over USB 3.1 Gen 1 | External power 5.0 V
Power consumptionUSB power: 1.3 W (typical) | Ext. power:1.5 W (typical)
Regulations2014/30/EU; 2011/65/EU, incl. amendment 2015/863/EU (RoHS); FCC Class B digital device; CAN ICES-003 (B) / NMB-3 (B)

Configure Your Camera

Closed Housing

ClosedHousingC-Mount

1800 U-120M    C-Mount

Order code : V214142

ClosedHousingCS-Mount

1800 U-120M  CS-Mount

Order code : V214141

ClosedHousingS-Mount

1800 U-120M     S-Mount

Order code : V214140

ClosedHousingC-Mount90°

1800 U-120M    C-Mount

Order code : V214154

ClosedHousingCS-Mount90°

1800 U-120M    CS-Mount

Order code : V214153

ClosedHousingS-Mount90°

1800 U-120M     S-Mount

Order code : V214152

Open Housing

Open Housing

1800 U-120M    C-Mount

Order code :  V211913

OpenHousingCS-MountStandard

1800 U-120M    CS-Mount

Order code : V211912

OpenHousingS-MountStandard

1800 U-120M    S-Mount

Order code : V211911

OpenHousingC-Mount90°

1800 U-120M    C-Mount

Order code : V211885

OpenHousingCS-Mount90

1800 U-120M      CS-Mount

Order code : V211884

OpenHousingS-Mount90°

1800 U-120M     S-Mount

Order code : V211883

Bareboard Housing

BareBoard

1800 U-120M

Order code : V211910

BareBoard90°

1800 U-120M

Order code : V211882
