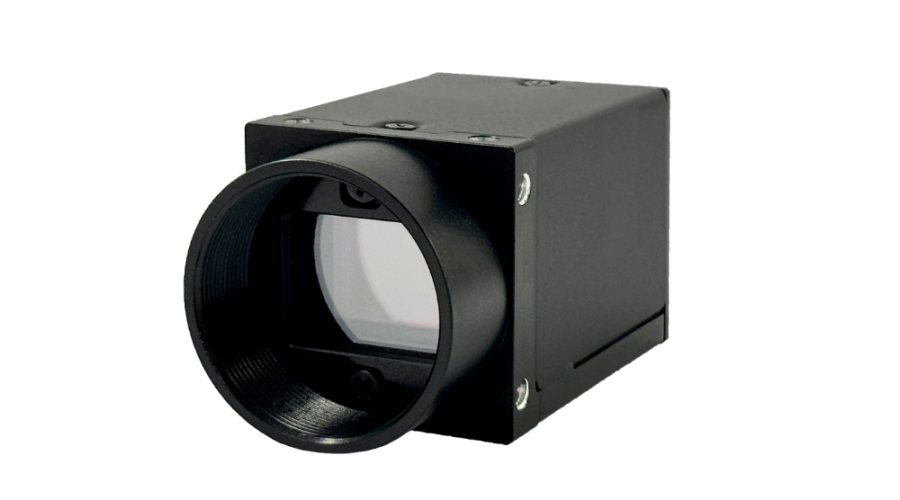

UA6M3ARGV-29M
Highlight Features
- Rolling Shutter CMOS
- 3072 * 2048
- 19fps (29fps with SAccelTM)
- Color / Mono
| Model | UA6M3ARGV-29M | UA6M3ARGV-29C |
|---|---|---|
| Sensor | IMX178 | |
| Sensor | Rolling Shutter CMOS | |
| Resolution | 3072 * 2048 | |
| Image Mode | Mono | Color |
| Optical Size | 8.86 mm（1/1.8"） | |
| Pixel Size | 2.4μm * 2.4μm | |
| Max Frame Rate | 19fps (29fps with SAccelTM) | |
| Dynamic Range | ≥71.8 dB | |
| Data Rate | Compression Transfer OFF: 119 MB/s Compression Transfer ON: 182MB/s | |
| Trigger Mode | Free run / External trigger | |
| External Trigger | Software trigger / External IO | |
| Data Rate | Compression Transfer OFF: 119 MB/s Compression Transfer ON: 182MB/s | |
| Digital Gain | 0.1-8.0x | |
| Dimensions | 29.0 mm (W) x29.0 mm (H) x47.3 mm (D) (Without adapter) | |
| Dynamic Range | ≥71.8 dB | |
| Exposure Control | Time Setting / Pulse Width / Auto Exposure | |
| Exposure Time | 16μs- 10s | |
| Power Consumption | 3.5W (DC power supply) / 4.1W(PoE power supply) | |
| Power Supply | DC12-24V (±10%) 0.5Aor PoE power supply | |
| Storage Temperature | -20-75℃ | |
