V2B-O2-5M-10-1.0

The most advance Telecentric Multiple-Phase Shift Projectors 3D Camera

V2B-O2-5M-10-1.0

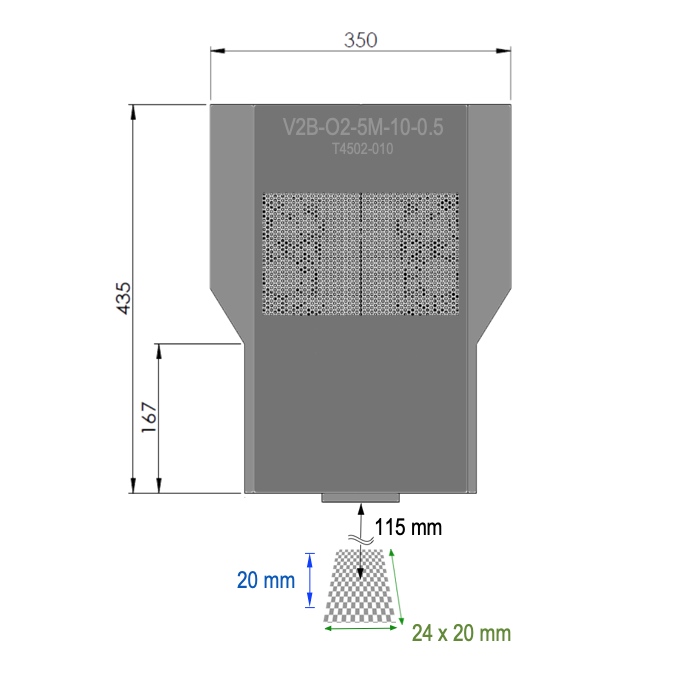

V2B-O2-5M-10-1.0 is a Telecentric snapshots 3D camera powered by multiple Blue-LED structured lights pre-calibrated to give the most accurate 3D Imaging reading. Built with 5 megapixels camera, it covers a FOV of 24 x 20 mm with an XY pixels resolution of 10 um with a Z-height resolution of 1um at a maximum DOF of 10 mm.

Unlike lasers triangulation technology that requires constant movement of objects or cameras, snapshot 3D cameras like V2B-O2-5M-10-1.0 combine telecentric Lens and Multiple Phase-shift projection technologies that enable the camera to capture 3D data of the object precisely without needing to move either the cameras of objects. With patented technologies, it also enables the camera to have very high DOF with respect to its FOV with unbeatable accuracies.

Vital Vision Pte Ltd logo 2022
ModelV2B-O2-5M-10-1.0
Optics Configuration Telecentric Structure Light Series – Dual Projector 3D Module
Camera5MP Camera Link (Global Shutter, w/o Captured Card)
Light Source Structured Light x 2(RGB) + High-angle Light(White, Embedded)
FOV (mm)* 24 x 20
3D DOF (mm) 10
XY Resolution (um)10 x 10
Z Resolution (um)1
Max Speed (ms/3D)***Approx 175
Weight (kg) Approx 7.5
Accessories Control and Power Cable, Power Supply(w/ cable), USB 3.0 Cable(3 meter),
Camera Link Cable(3 meter)x2, Dongle、Flash Drive, Handle x2 (Removable)
Functions Output: 2D High-angle Light Image / 2D External Light Image / 2D Color Image
/ 2.5D Image, I/O Trigger, External Light Source, In-Situ Accuracy
Calibration(Calibration Gauge Required), E.DOF Mode, C++/C# SDK
