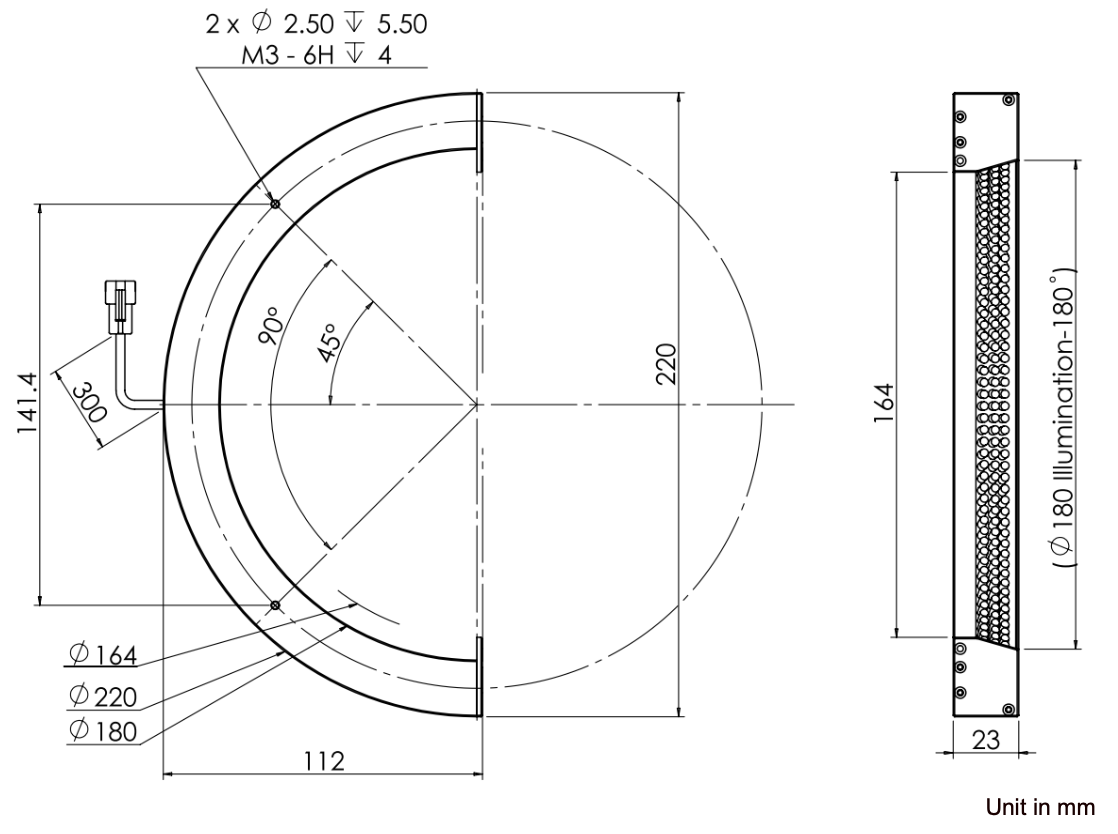

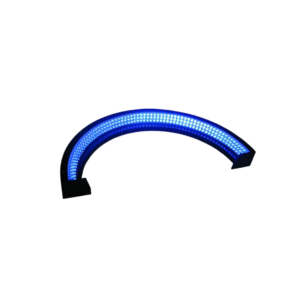

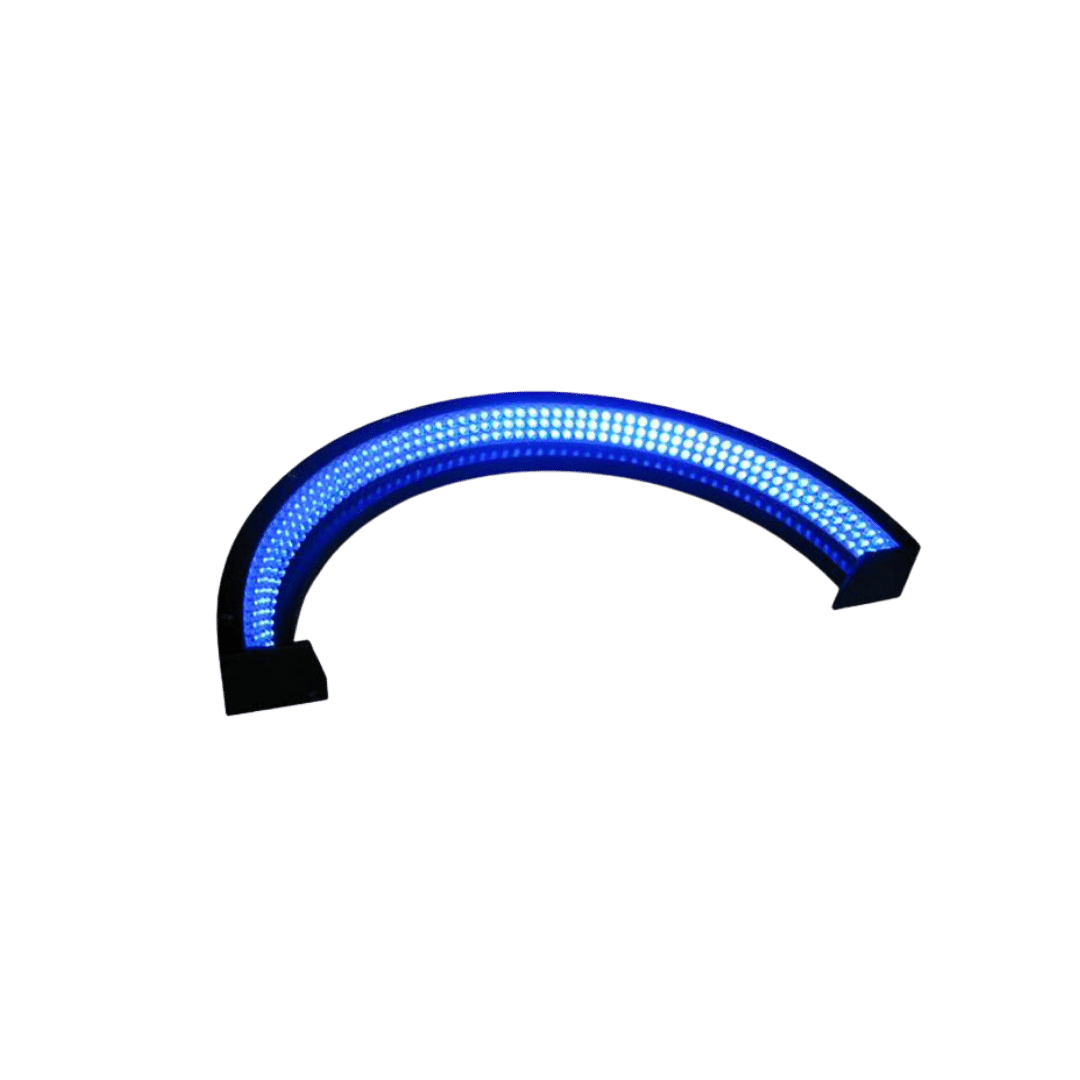

V2DR-i220-LA3-HC180 is a Half Circle Low Angle  Ring Light with through-hole mount  LEDs designed for machine vision application.  It has a diameter of 220 mm and an illumination area of 180 mm in diameter.

Ordering Information

Models with Resistors :         V2DR-i220-LA3-HC180-SR24/G/B/W

Models without Resistors : V2DR-i220-LA3-HC180-SR24/G/B/W-O

Example : Model for Blue version with no resistor : “V2DR-i220-LA3-HC180-B-O”,   Model for Green version with resistor “V2DR-i220-LA3-HC180-G”
