V2FL-TP-Si230-HC180
The power-saving back light system with a very thin design and a very uniform surface light emission profile
Main > Product > Machine Vision Lighting > Diffused Back Light V2FL Series > V2FL-Si100-IP65
V2FL-TP-Si230-HC180

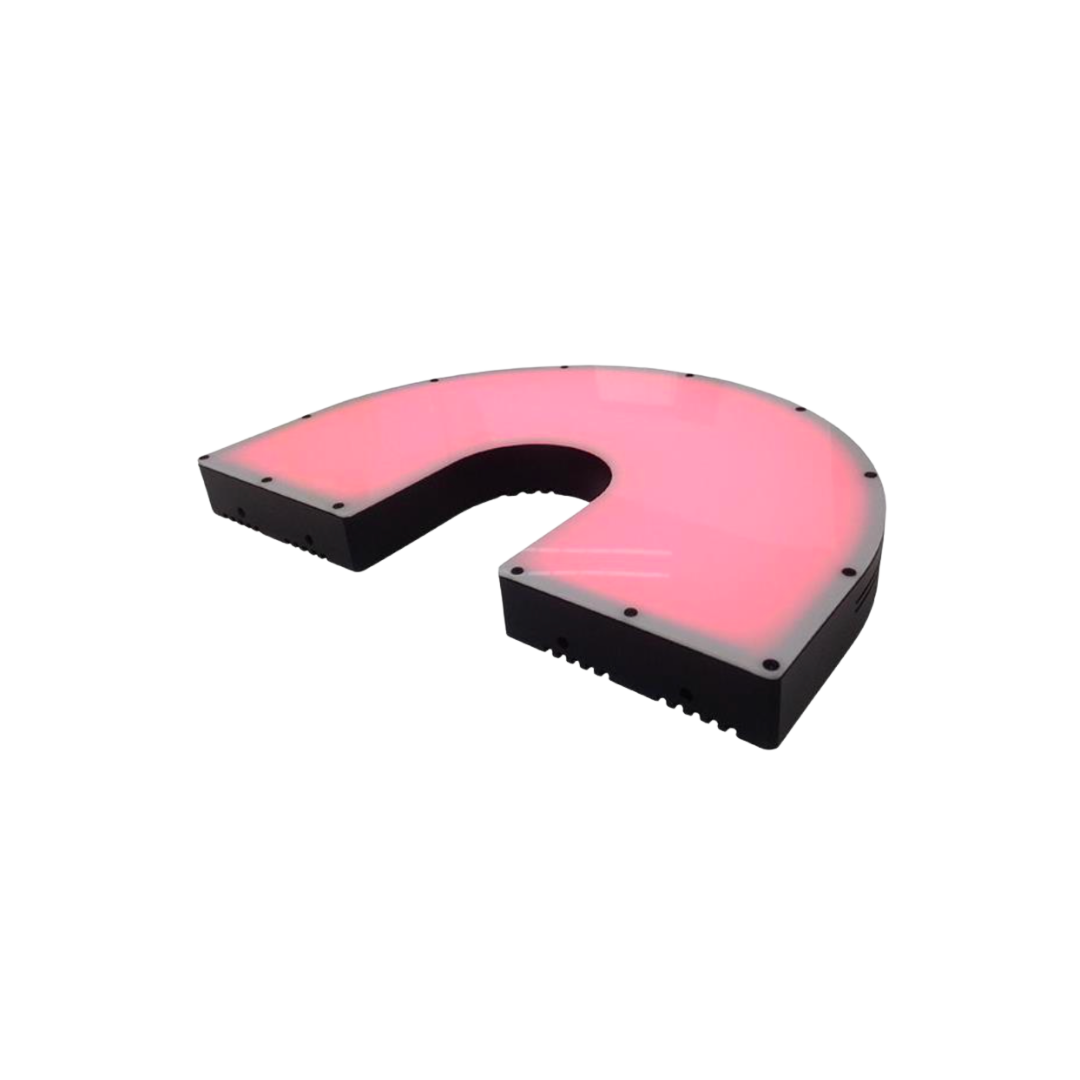

Power-saving backlight system with an extremely thin design and a very uniform surface light emission profile. The V2FL features a minimum casing height of 5mm – 10mm, enabling application even in highly limited mounting space. High power models are available for this series. V2DL-TP-Si230-HC180-R24 is a Half Circle High Brightness Diffuse Back Light
Illumination Structure:
Light from the LEDs placed at four sights of the light guides passes through the plate to produce uniform illumination.
This product has IP lighting, which helps to protect the lighting against contact and infiltration of water and dirt, which are classified by the degree of protection.
Ordering Information
Models with Resistors : V2DL-TP-Si230-HC180-R24
Models without Resistors : V2DL-TP-Si230-HC180-R24-O
Example : Model for Red version with no resistor : “V2DL-TP-Si230-HC180-R24-O”, Model for Red version with resistor “V2DL-TP-Si230-HC180-R24”
