VS-1220HV
The VS-1220HV a standout model within the VS-HV Series—a collection of Fixed Focal Length lenses tailored to support 12MP 1.1″ sensors. With a fixed focal length of 12mm, this lens ensures optimal clarity and precision in imaging. Designed for versatility, the VS-1220HV offers a generous working distance of 100mm, making it suitable for a variety of applications. With a lens length of 54.0mm and a diameter of φ43.0, this model is crafted for efficiency without compromising on performance. Elevate your imaging experience with the VS-1220HV, showcasing the advanced features and quality synonymous with the VS-HV Series.
| Model | VS-1220HV |
|---|---|
| Focal Length | 12mm |
| Maximum Aperture | 1: 2.0 |
| Aperture | F2.0~ 16 |
| Angle of View | 46.7° x 61.9° (Diagonal 75.1°) |
| MOD | 100 mm |
| TV Distortion | -1.29 % |
| Operation | Manual （Lock screw M2） |
| Wavelength | Visible |
| Camera mount | C-mount |
| Flange Back | 17.526 mm |
| Sensor Size | 1.1" |
| Filter Thread | M=40.5 P=0.5 |
| Weight (approx.) | 155 g |

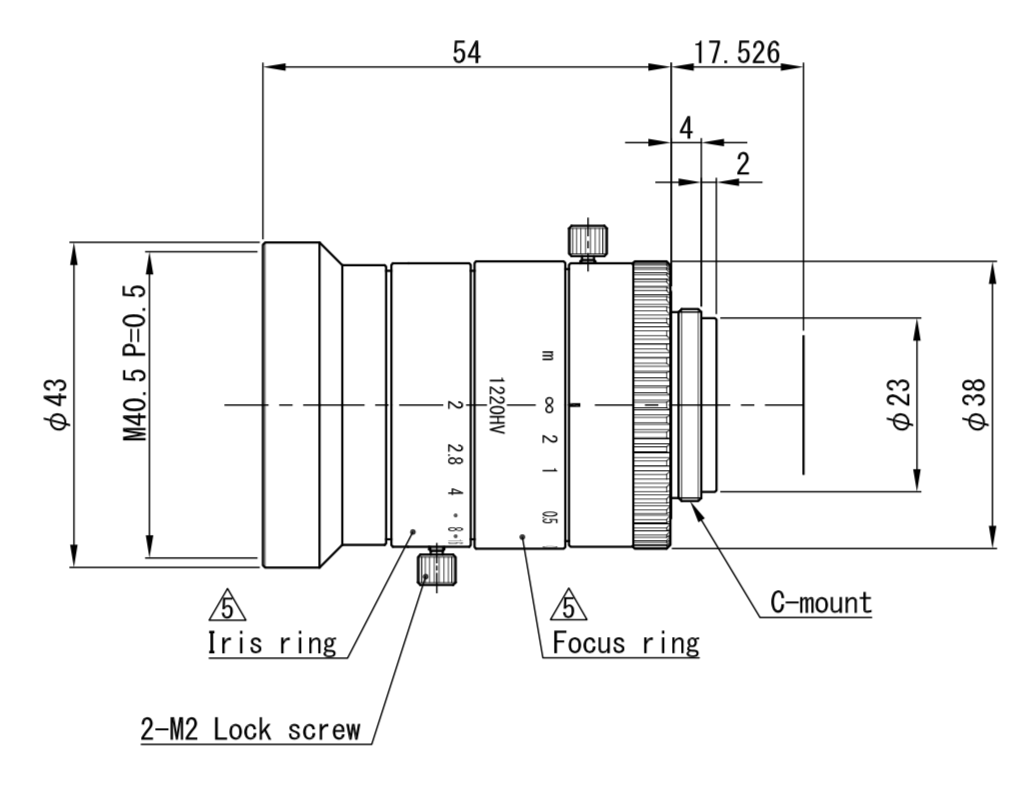

| Dimension | φ43(max.) × L = 54mm |
| Lens Model | VS-1220HV | |||
|---|---|---|---|---|
| Extension Ring (mm) | WD Minimum(mm) | WD Maximum (mm) | Mag @ Max WD | Mag @ Min WD |
| 0.5 | 68.5 | 294.0 | 0.040x | 0.147x |
| 1.0 | 50.1 | 137.2 | 0.081x | 0.188x |
| 1.5 | 38.5 | 86.6 | 0.121x | 0.228x |
