VS-1620HV

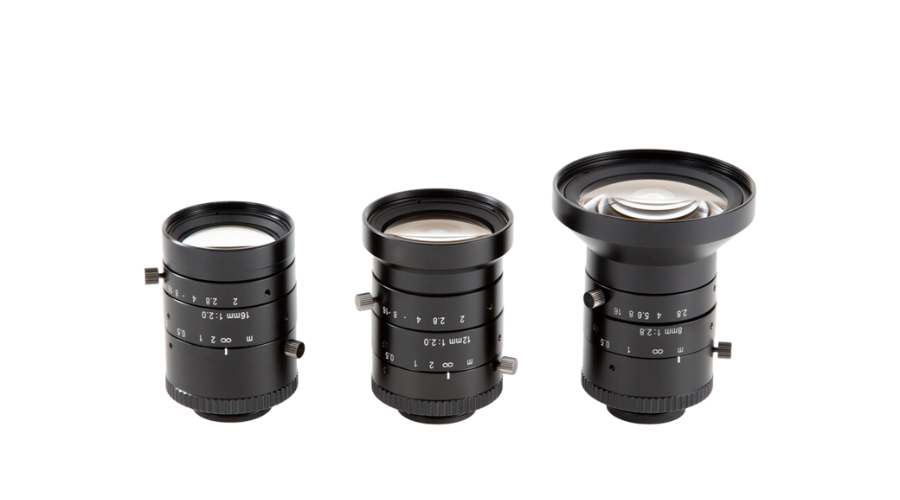

The VS-1620HV a standout model within the VS-HV Series—a collection of Fixed Focal Length lenses tailored to support 12MP 1.1″ sensors. With a fixed focal length of 16mm, this lens ensures optimal clarity and precision in imaging. Designed for versatility, the VS-1620HV offers a generous working distance of 100mm, making it suitable for a variety of applications. With a lens length of 50.5mm and a diameter of φ38.0, this model is crafted for efficiency without compromising on performance. Elevate your imaging experience with the VS-1620HV , showcasing the advanced features and quality synonymous with the VS-HV Series.
| Model | VS-1620HV |
|---|---|
| Focal Length | 12mm |
| Maximum Aperture | 1: 2.0 |
| Aperture | F2.0~ 16 |
| Angle of View | 35..4° x 47.6° (Diagonal 59.3°) |
| MOD | 100 mm |
| TV Distortion | -1.31 % |
| Operation | Manual |
| Wavelength | Visible |
| Camera mount | C-mount |
| Flange Back | 17.526 mm |
| Sensor Size | 1.1" |
| Filter Thread | M=35.5 P=0.5 |
| Weight (approx.) | 144g |
| Dimension | φ38(max.) × L = 50.5mm |
| Lens Model | VS-1620HV | |||
|---|---|---|---|---|
| Extension Ring (mm) | WD Minimum(mm) | WD Maximum (mm) | Mag @ Max WD | Mag @ Min WD |
| 0.5 | 79.5 | 533.9 | 0.030x | 0.171x |
| 1.0 | 65.0 | 258.3 | 0.060x | 0.201x |
| 1.5 | 54.0 | 164.5 | 0.091x | 0.232x |
| 2.0 | 45.9 | 119.4 | 0.121x | 0.262x |
