VS-B0624H
Introducing the VS-B0624H, a standout model from the VS-B Series of Machine Vision S-mount Board Lenses. With a focal length of 6mm and a minimum object distance (M.O.D) of 100mm, this lens is meticulously crafted for precision in imaging applications. Boasting an F-number of 2.4, the VS-B0624H excels in capturing detailed and clear visuals in various lighting conditions. The M12 mount with a pitch of P=0.5 ensures seamless compatibility with board cameras, offering a versatile solution for machine vision setups. Whether applied in industrial automation or other high-tech environments, the VS-B0624H embodies the high standards of the VS-B Series, providing reliability and performance for demanding machine vision applications.
| Model | VS-B0624H |
|---|---|
| Focal Length (f) | 6 mm |
| Maximum Aperture Ration | 1: 2.4 |
| Aperture | F 2.4 ~ 16 |
| Angle of view | 44.8° × 58.7° ( Diagonal 71.6) |
| M.O.D | 100 |
| TV Distortion | -2.71% |
| Wavelength | Visible |
| Mount | M12 P=0.5 |
| Flange Back | 6.02mm |
| Sensor Size(Max) | 1/2" |
| Weight (Approx) | 8g |

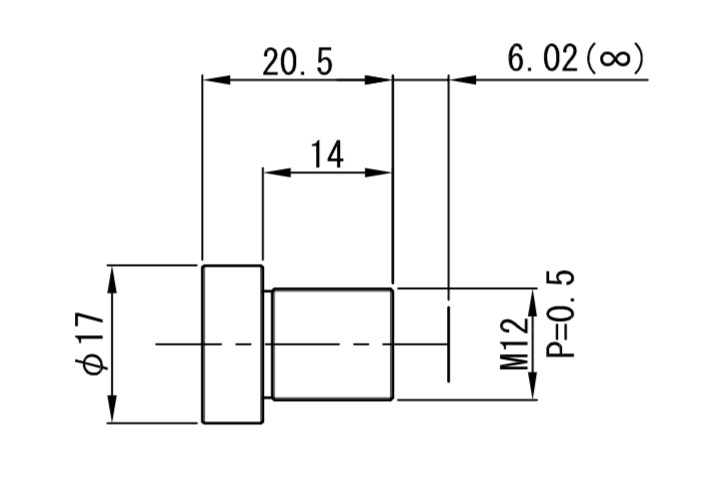

| Dimension | φ17(max.) × L = 20.5mm |
