VS-FT12HV Series
Wide Angle Fixed Focal Length Lens

Main > Product > Machine Vision Lenses > Fixed Focal TV Lens > VS-FT12HV Series

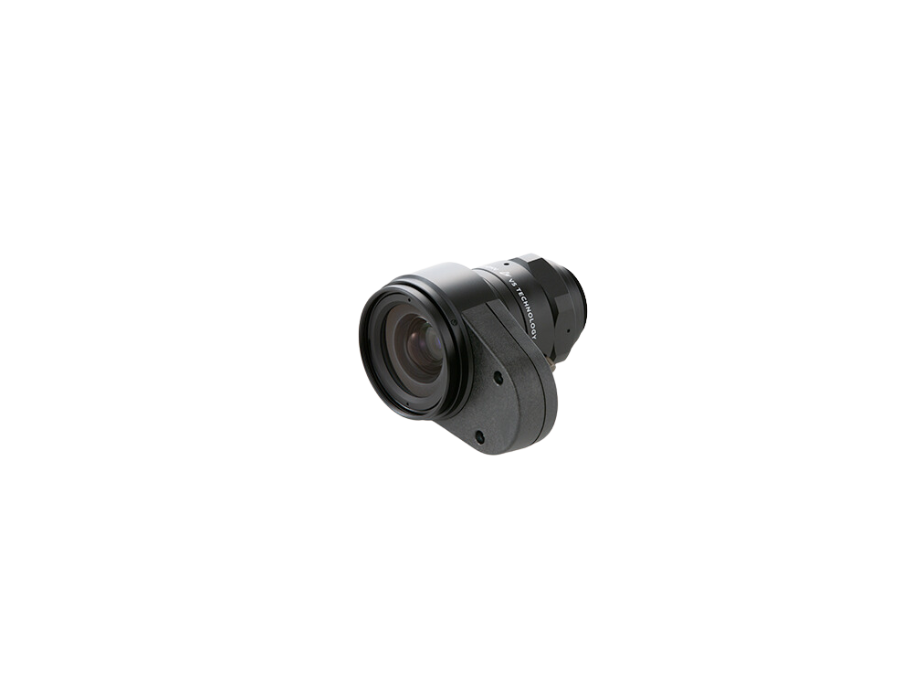

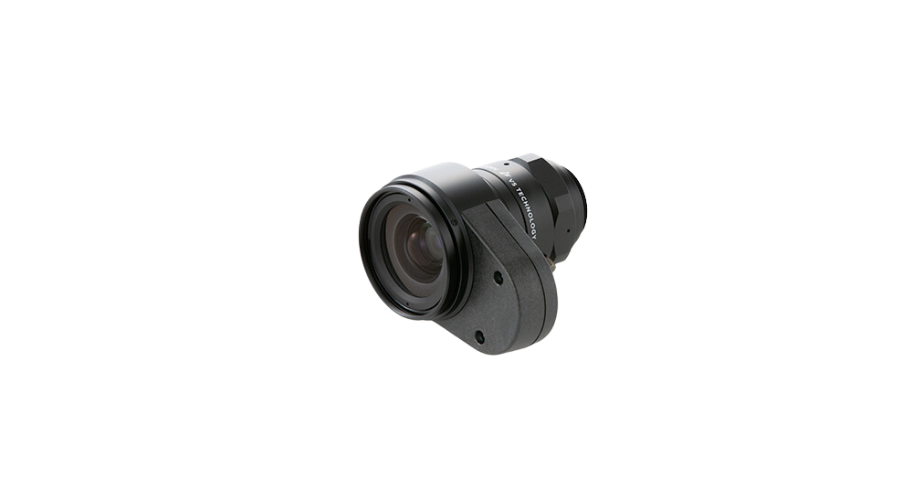

VS-FT12HV Series
The VS-FT12HV Series stands out as a high-performance Wide Angle Fixed Focal Length Lens optimized for 12MP 1.1″ sensors. With a remarkable resolution support of 1.1″ and 3.45μm, this lens ensures exceptional image clarity and detail. Its wide angle of view is tailored to the specifications of 1.1″ sensors, providing expansive coverage for imaging applications. The lens offers unparalleled flexibility with the ability to adjust focus from 150mm to infinity, accommodating diverse distance requirements. Notably, the VS-FT12HV Series features built-in liquid focusing, and for enhanced functionality, optional liquid focusing lens drivers and cables are available. This series is a robust solution for applications demanding superior image quality, versatility, and precise focus control.

| Model Name | Fixed Focal length | Sensor Size | Working Distance | Lens Length | Diameter |
|---|---|---|---|---|---|
| VS-FT12HV | 12 | 1.1" | 150 | 64.0 | 47.0 |
