VS-H2520-IRC
The VS-H2520-IRC is a specific model within the VS-H-IRC Series, offering a focal length of 25mm, a minimum object distance (M.O.D) of 500mm, and an adjustable aperture from F2.0 to F16. It is designed with a C-mount, making it compatible with various industrial cameras. The lens is optimized for wavelengths ranging from 400 to 950nm, covering both visible and near-infrared spectra. With support for up to 2/3″ sensors, this model is well-suited for applications requiring precise imaging and focus in industrial environments.
| Model | VS-H2520-IRC |
|---|---|
| Focal Length | 25mm |
| Maximum Aperture | 1: 2.0 |
| Aperture | F2.0 ~ F16 |
| Angle of View | 16.3 x 19.2 (Diagonal 25.1) |
| MOD | 500 mm |
| TV Distortion | -0.33 % |
| Operation | Manual (Lock Screw M2) |
| Wavelength | Visible ~ 950nm |
| Camera mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size | 2/3" |
| Filter Thread | M=30.5 P=0.50 |
| Weight (approx.) | 100 g |

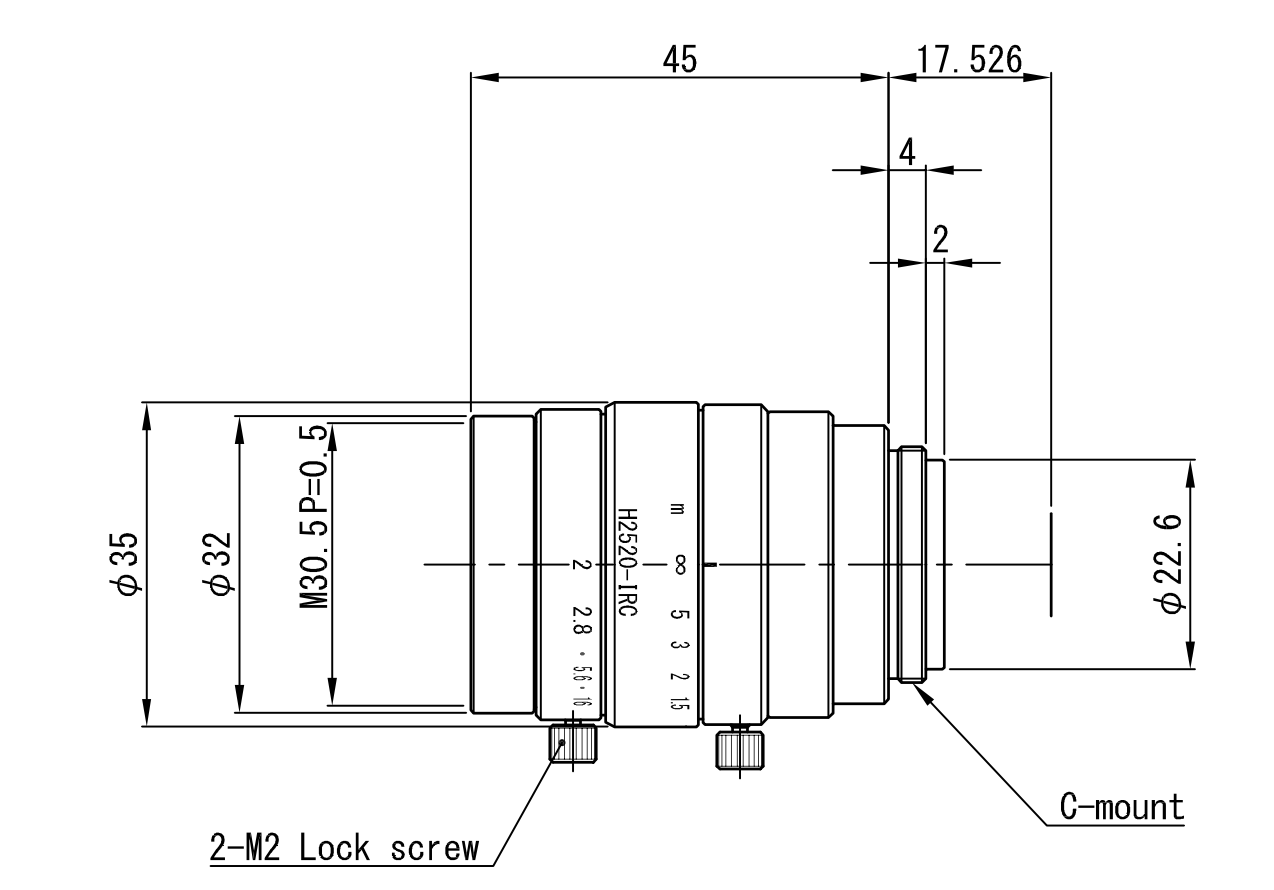

| Dimension | φ35(max.) × L =45mm |
