VS-HX3535
The VS-HX3535, an 8K Resolution Large Format Fixed Focal Length Lens, is a precision optical instrument meticulously designed for high-resolution imaging. With a 35mm focal length and a minimum object distance (M.O.D) of 330mm, this lens offers exceptional versatility for a variety of applications. Operating with a variable aperture from F/3.5 to F/16, it ensures high-quality image capture even in challenging lighting conditions. The VS-HX3535 is equipped with an M52 P=0.75 mount, making it compatible with a range of camera systems. Whether you’re engaged in industrial quality control, scientific research, or other imaging tasks, this lens promises remarkable clarity and precision.
Key Features:
- 2.74um pixel resolution for enhanced clarity compared to conventional models
- Compact design and light weight (approx. 500g or less)
- Less distortion and flare
- Select mount adaptors are available
| Model | VS-HX3535 |
|---|---|
| Focal Length | 35mm |
| Maximum Aperture | 1: 3.5 |
| Aperture | F3.5~ 16 |
| Angle of View | 27.6 x 41.1° (Diagonal 49.9°) |
| MOD | 330.4 mm |
| TV Distortion | -1.48 % |
| Operation | Manual (Lock screw M2) |
| Wavelength | Visible |
| Camera mount | M 52 P= 0.75 |
| Flange Back | 46.5 mm |
| Sensor Size | Super 35mm |
| Filter Thread | M=49 P=0.75 |
| Weight (approx.) | 500 g |

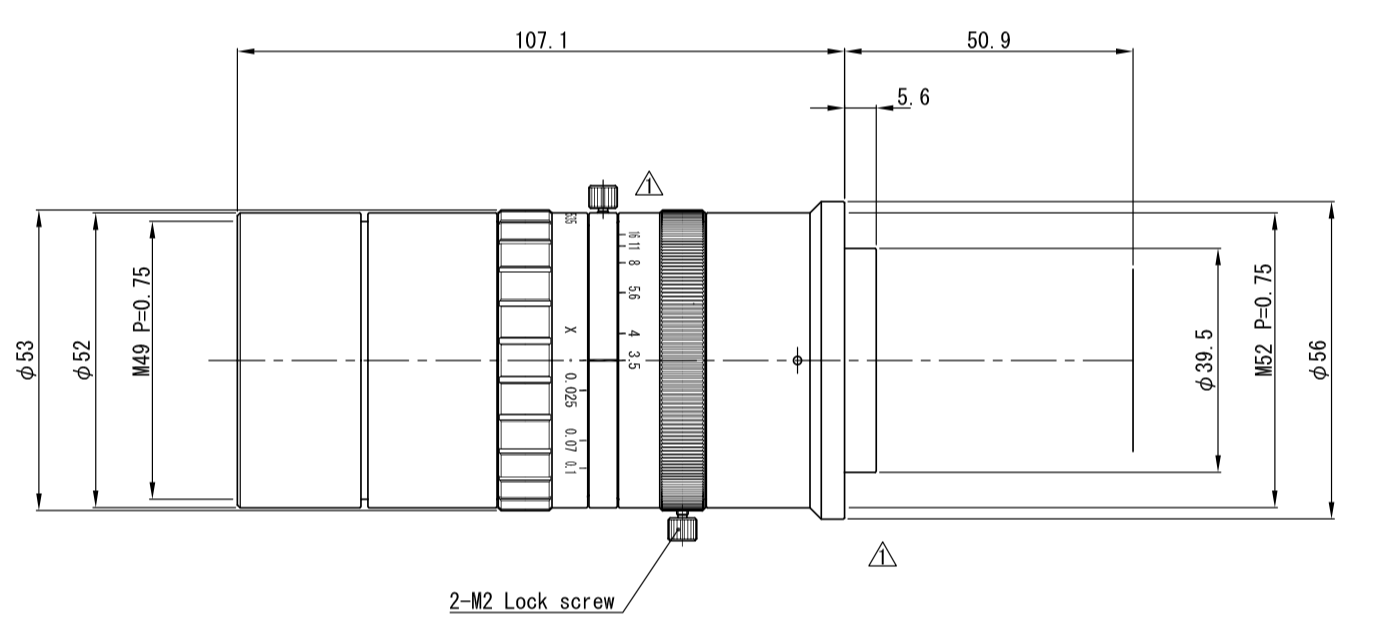

| Dimension | φ56(max.) × L = 107.1mm |
