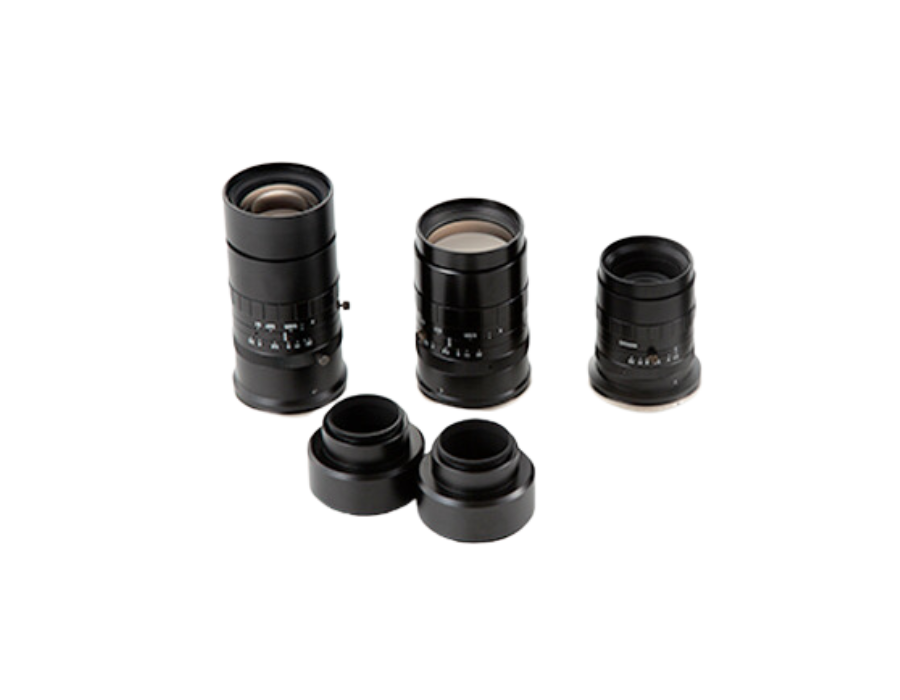

VS-HX3535
The VS-HX3535 is a cutting-edge 8K Resolution Large Format Fixed Focal Length Lens designed for high-performance imaging applications. With a focal length of 35mm and an expansive image circle of Φ32mm, it provides exceptional coverage and detail in large-format scenarios. The lens features a versatile aperture range from F3.5 to F16, offering precise control over depth of field and exposure. With a minimum object distance (M.O.D) of 330mm, it delivers clarity even in close-up situations. The lens is equipped with an M52 mount with a pitch of P=0.75, ensuring compatibility with various imaging systems. The VS-HX3535 combines advanced optics with a robust design, making it an excellent choice for professionals seeking uncompromised image quality and flexibility in large-format imaging.
| Model | VS-HX3535 |
|---|---|
| Focal Length | 35mm |
| Maximum Aperture | 1: 3.5 |
| Aperture | F3.5~ 16 |
| Angle of View | 27.6 x 41.1° (Diagonal 49.9°) |
| MOD | 330.4 mm |
| TV Distortion | -1.48 % |
| Operation | Manual (Lock screw M2) |
| Wavelength | Visible |
| Camera mount | M 52 P= 0.75 |
| Flange Back | 46.5 mm |
| Sensor Size | Super 35mm |
| Filter Thread | M=49 P=0.75 |
| Weight (approx.) | 500 g |
| Dimension | φ56(max.) × L = 107.1mm |
