VS-LLD15
The VS-LLD series’ distortionless design, in combination with a Floating System of internal lens elements, allows it to deliver high resolution performance at any magnification. With a maximum sensor size of up to 4/3″ it is a great selection to use for any application using a large sensor format that needs a distortionless image.
| Model | VS-LLD15 | |||
|---|---|---|---|---|
| Focal Length | 15mm | |||
| Maximum aperture ratio | 1: 2.0 | |||
| Optical Mag Range | (∞) x 0.05 ~ x 0.2 | |||
| Optical mag. | x 0.05 | x 0.1 | x 0.2 | |
| 4/3" | 272.0 × 362.0 mm | 136.0 × 181.0 mm | 68.0 × 90.5 | |
| FOV (VxH mm) | 1" | 225.2 x 225.2 mm | 112.6 x 112.6 mm | 56.3 x 56.3 mm |
| 2/3" | 142.0 x 168.0mm | 71.0 x 84.0 mm | 35.5 x 42.0 mm | |
| WD | 285.2 mm | 132.5 mm | 56.8 mm | |
| O/I (Object & Imager distance) | 388.9 mm | 234.2 mm | 155.9 mm | |
| Working F/# | 2.1 | 2.2 | 2.3 | |
| TV distortion | -0.14 % | -0.36 % | -0.64 % | |
| Operation | Manual | |||
| Wavelength | Visible | |||
| Camera mount | C-mount | |||
| Flange Back | 17.526 mm | |||
| Sensor size (max.) | 4.3" | |||
| Filter Thread | M=49 P=0.75 | |||
| Weight (approx.) | 330 g | |||

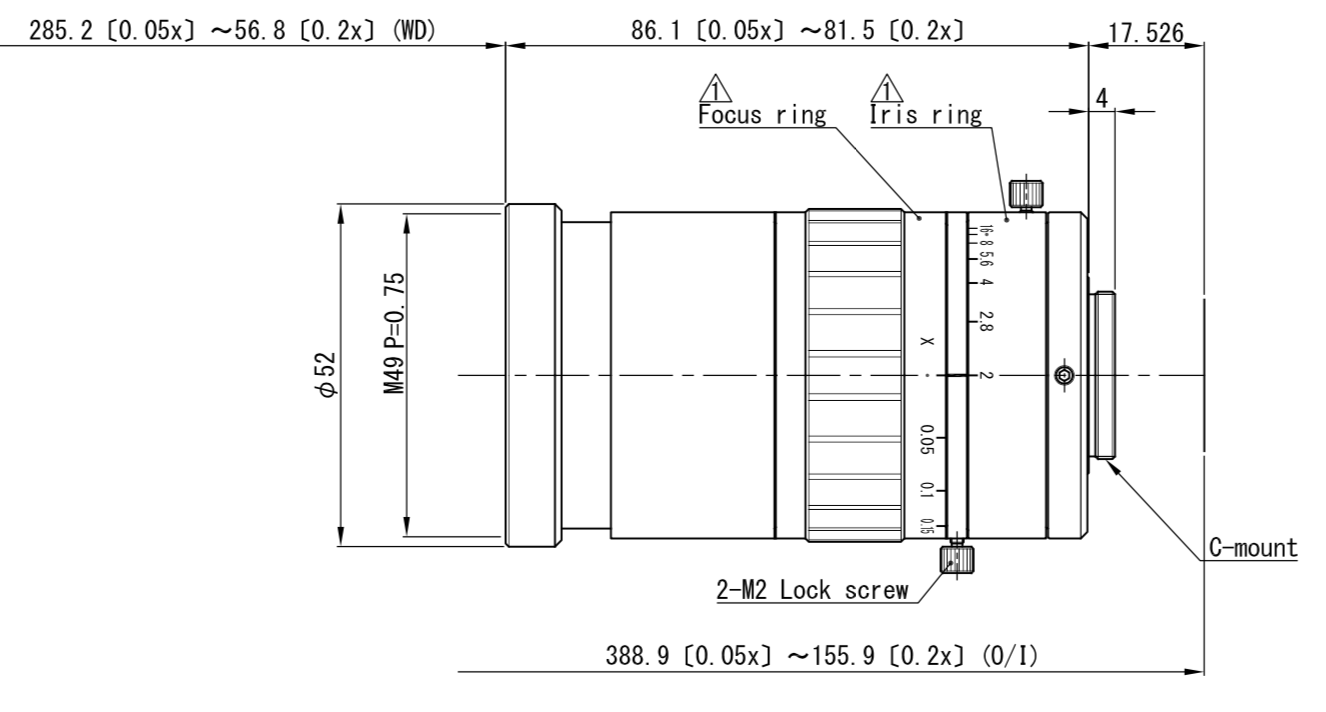

| Dimension | Φ 52 (max.) × | L = 86.1 (X0.05) ~ 81.5 | (X0.2) mm |
