VS-LTC03-130/FS
VS-LTC Series is designed for optimal sensor support and perfectly tailored to large format line scan sensors ranging from 21mm to 45mm in diameter. Choose from a comprehensive range of models to suit diverse imaging needs. Benefit from minimized shading, adjustable depth of field, and a cutting-edge telecentric design that ensures precision and accuracy. Elevate your capabilities with bi-telecentric lens options and capture a wider field of view while enjoying seamless compatibility with various mount adaptors, including M42, TFL, M58, and more.
Key Features:
- Optimal Sensor Support
- Tailored for Large Format Line Scan Sensors
- Comprehensive Model Range
- Shade Reduction
- Adjustable Depth of Field
- Cutting-Edge Telecentric Design
- Bi-Telecentric Lens Options
- Enhanced Field of View
- Support various mount adaptors, including M42, TFL, M58, and more
| Model | VS-LTC03-130/FS |
|---|---|
| Optical Mag. | × 0.3 ± 5% |
| FOV | 73.3 mm |
| WD | 130.2 mm ± 4 |
| O/I (Object & Imager Distance) | 340.2mm |
| Working F/# | 5.8 |
| NA | 0.026 |
| DOF at PCoC φ0.04mm | 5.2mm |
| TV distortion (φ22mm) | 0.01% |
| Relative illuminance(φ22mm) | 94 % |
| Wavelength | Visible |
| Camera Mount | F-mount |
| Flange Back | 46.5 mm |
| Image circle | φ22mm |
| Filter thread | M 82 P= 0.75 |
| Weight (approx.) | 960 g |

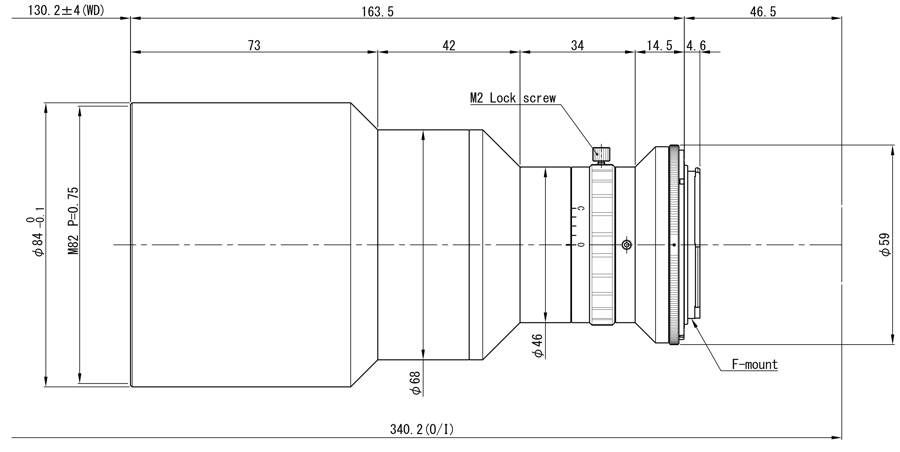

| Dimension | φ 84 (max.) × L= 163.5mm |
