VS-LTC1-130-45/FS
VS-LTC Series is designed for optimal sensor support and perfectly tailored to large format line scan sensors ranging from 21mm to 45mm in diameter. Choose from a comprehensive range of models to suit diverse imaging needs. Benefit from minimized shading, adjustable depth of field, and a cutting-edge telecentric design that ensures precision and accuracy. Elevate your capabilities with bi-telecentric lens options and capture a wider field of view while enjoying seamless compatibility with various mount adaptors, including M42, TFL, M58, and more.
Key Features:
- Optimal Sensor Support
- Tailored for Large Format Line Scan Sensors
- Comprehensive Model Range
- Shade Reduction
- Adjustable Depth of Field
- Cutting-Edge Telecentric Design
- Bi-Telecentric Lens Options
- Enhanced Field of View
- Support various mount adaptors, including M42, TFL, M58, and more
| Model | VS-LTC1-130-45/FS | |
|---|---|---|
| Optical mag. | × 1.0 ± 5 % | |
| FOV | φ 45.0 mm | |
| WD | 130.0 mm | |
| O/I (Object & Imager distance) | 411.5 mm | |
| Working F/#*Value at Iris Open | 6.4 | |
| NA | 0.078 | |
| DOF at PCoC φ0.04mm | 0.5 mm | |
| Optical Distortion (Y=22.5) | 0.04 % | |
| Relative Illuminance (Y=22.5) | 97 % | |
| Wavelength | Visible | |
| Camera mount | F-mount | |
| Flange back | 46.5 mm | |
| Image Circle | Φ 45 mm | |
| Co-axial prism | - | |
| Weight (approx.) | 1180 g | |

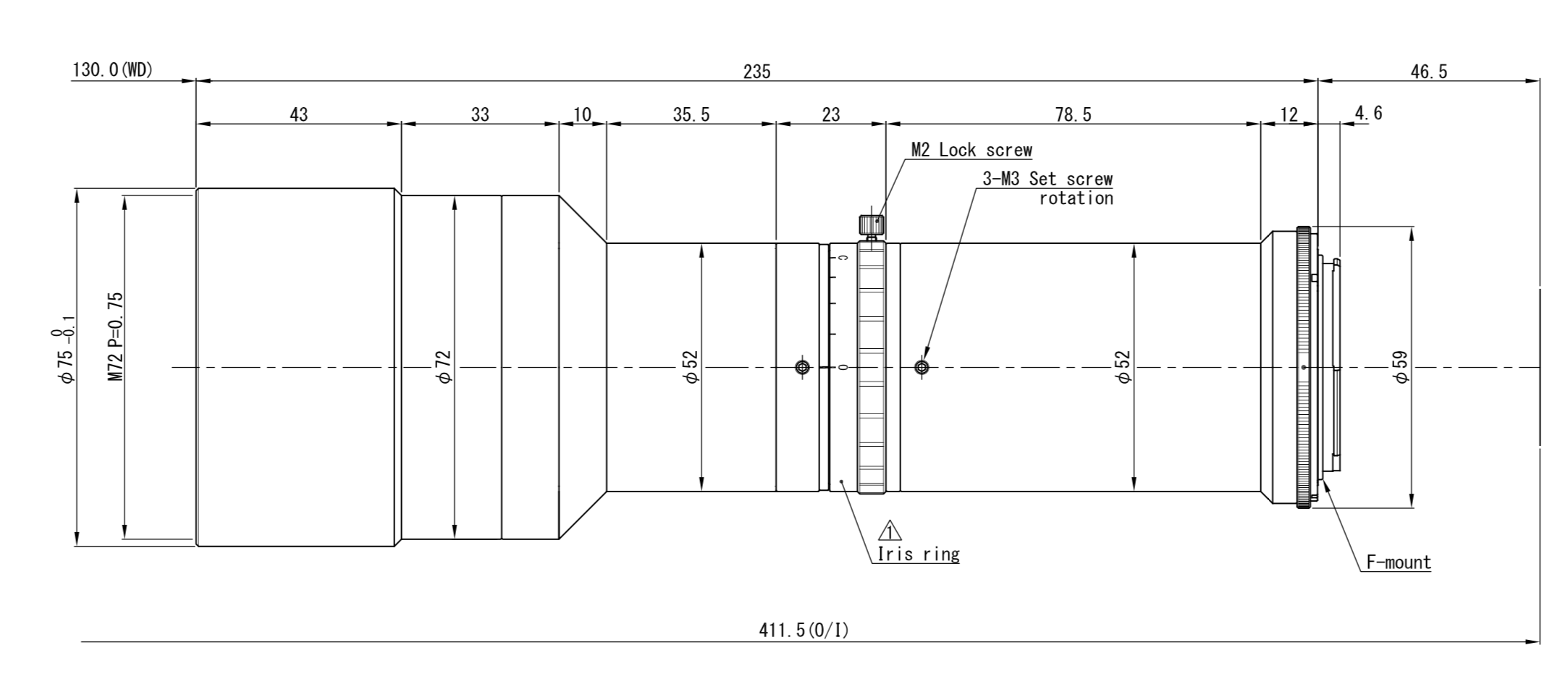

| Dimension | Φ 75 (MAX) × L= 235mm |
