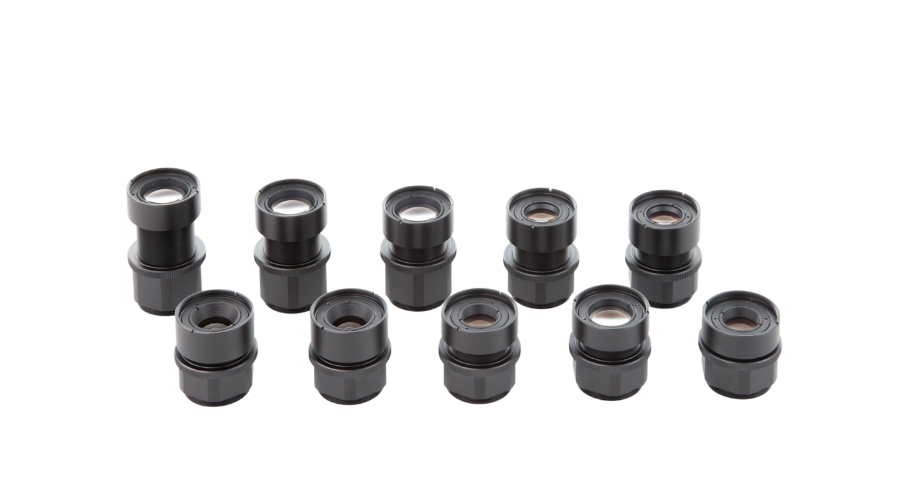

VS-MCA6.5
The VS-MCA6.5, a distinguished member of the VS-MCA Series, represents excellence in the Vibration Resistant Distortionless Macro Lens category. With a focal length of 6.5mm, this lens provides a unique range of features for versatile applications. Boasting an impressive working distance (WD) from 656.0mm to 98.0mm, and a magnification range from 0.01x to 0.06x at infinity, the VS-MCA6.5 ensures detailed and distortionless macro imaging. Its adaptable working F/#, ranging from 2.3 to 8.5, further enhances its versatility, catering to diverse imaging scenarios. Choose the VS-MCA6.5 for unparalleled macro lens performance in applications demanding vibration resistance and distortion-free precision.
| Model | VS-MCA6.5 | |||
|---|---|---|---|---|
| Focal Length | 6.5mm | |||
| Maximum aperture ratio | 1 : 2.2 | |||
| Optical Mag Range | (∞) x 0.01 ~ x 0.06 | |||
| Optical mag. | x 0.01 | x 0.03 | x0.06 | |
| FOV (VxH mm) | 2/3" | - | - | - |
| 1/2" | 480.0 x 640.0 mm | 260.0 X 213.3 mm | 80.0 X 106.7 mm | |
| 1/3" | 360.0 x 480.0 mm | 120.0 X 160.0 mm | 60.0 X 80.0 mm | |
| WD | 656.0 mm | 209.6 mm | 98.0 mm | |
| O/I (Object & Imager distance) | 696.6 mm | 250.3 mm | 138.9 mm | |
| Aperture | 2/5.6/8 | 2/5.6/8 | 2/5.6/8 | |
| Working F/# | 2.3/5.7/8.1 | 2.3/5.8/8.2 | 2.3/5.9/8.5 | |
| TV distortion | 0.16% | 0.02 % | -0.18 % | |
| Operation | Manual | |||
| Wavelength | Visible | |||
| Camera mount | C-mount | |||
| Flange Back | 17.526 mm | |||
| Sensor size (max.) | 1/2" | |||
| Filter Thread | M=27 P=0.5 | |||
| Weight (approx.) | 36 g | |||
| Dimension | Φ 31 (max.) × L = 23.1 (X0.01) ~ 23.4(X0.06) mm | |||
