VS-TCM1-250/S
Bigger sensor and high resolution cameras with a full range of magnification models
Main > Product > Machine Vision Lenses >Telecentric Lens > VS-TCM Series > VS-TCM1-250/s
VS-TCM1-250/S
VS-TCM1-250/S is made to support high-resolution cameras. With its high NA, these lenses are well suited for AOI, high-accuracy inspection, and measurement applications. The adjustable aperture allows the DOF and contrast to be set to your application’s needs.
| Model | VS-TCM1-250/s | |
|---|---|---|
| Optical Mag. | × 1.0 ± 5 % | |
| 2/3" | 7.1 x 8.4mm | |
| FOV (VxH) | 1/2" | 4.8 × 6.4mm |
| 1/3" | 3.6 × 4.8mm | |
| WD | 249.3 mm ± 7.5 | |
| O/I (Object & Imager Distance) | 399.0 mm | |
| Working F/# | 10.0 | |
| NA | 0.050 | |
| DOF at PCoC φ0.04mm | 0.8 mm | |
| TV distortion (max.) | 0.00% | |
| Relative illuminance(Y-5.5) | 100% | |
| Wavelength | Visible | |
| Camera Mount | C-mount | |
| Flange Back | 17.526 mm | |
| Sensor size (max.) | 2/3" | |
| Filter thread | M43 P=0.75 | |
| Co-axial prism | - | |
| Weight (approx.) | 220g | |

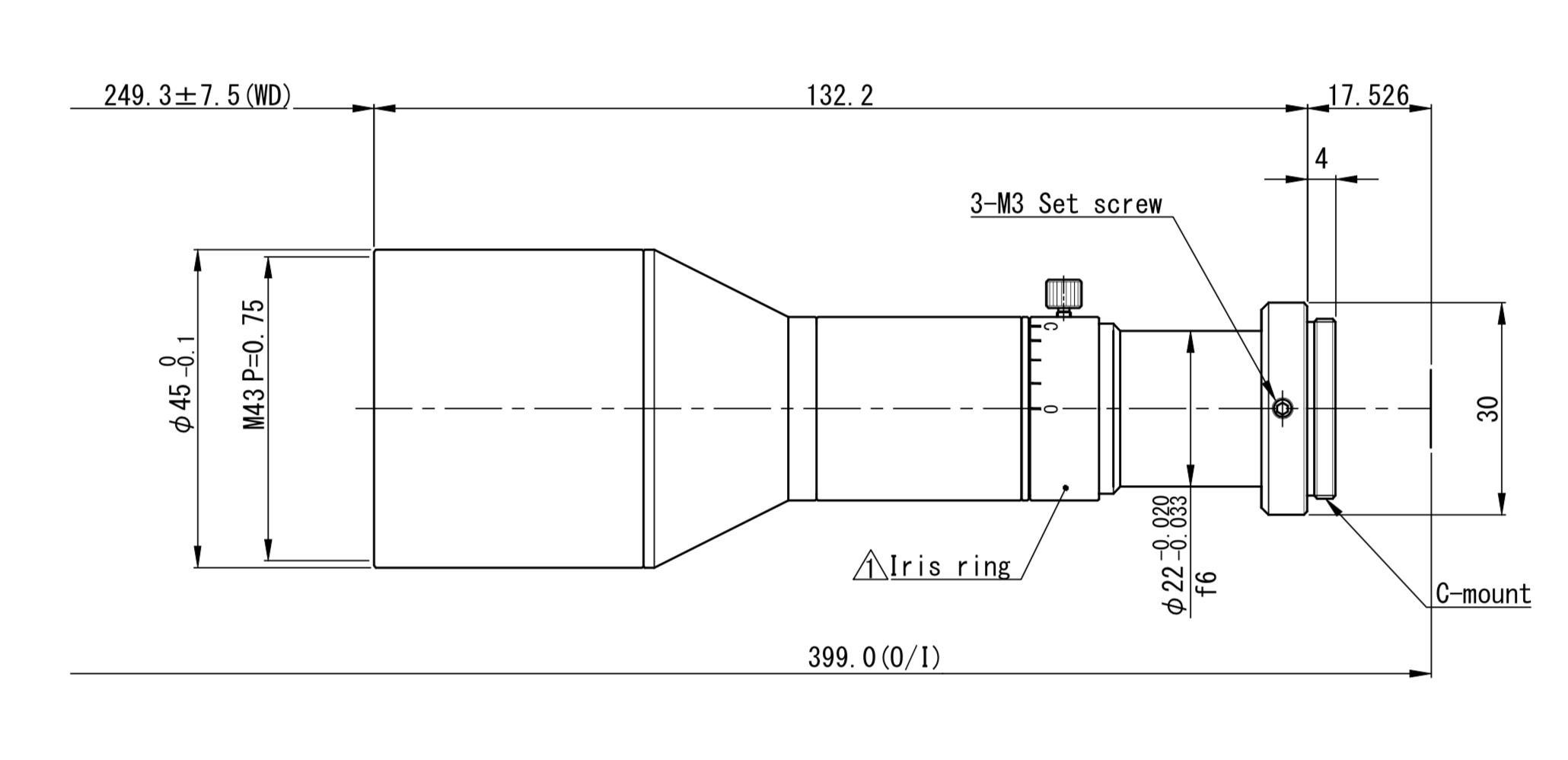

| Dimension | Φ 45 (MAX) × L= 132.2mm |
