VS-TCM4-50CO
VS-TCM4-50CO is made to suit the larger 1.1″ sensor format of high-resolution cameras. With its high NA, these lenses are well suited for AOI, high-accuracy inspection, and measurement applications. The adjustable aperture allows the DOF and contrast to be set to your application’s needs.
| Model | VS-TCM4-50CO | |
|---|---|---|
| Optical mag. | ×4.0±5% | |
| 1" | 2.8 x 2.8 mm | |
| FOV (VxH) | 2/3" | 1.8 x 2.1 mm |
| 1/2" | 1.2 x 1.6 mm | |
| WD | 52.4 ±4 mm | |
| O/I (Object & Imager distance) | 203.2 mm | |
| Working F/# | 20 | |
| NA | 0.100 | |
| DOF at PCoC φ0.04mm | 0.1mm | |
| TV distortion (max.) | 0.09% | |
| Relative illuminance(Y=4) | 90 % | |
| Wavelength | Visible | |
| Camera mount | C-mount | |
| Flange back | 17.526 mm | |
| Image circle | Φ22 mm | |
| Co-axial prism | Built-in | |
| Weight (approx.) | 132g | |

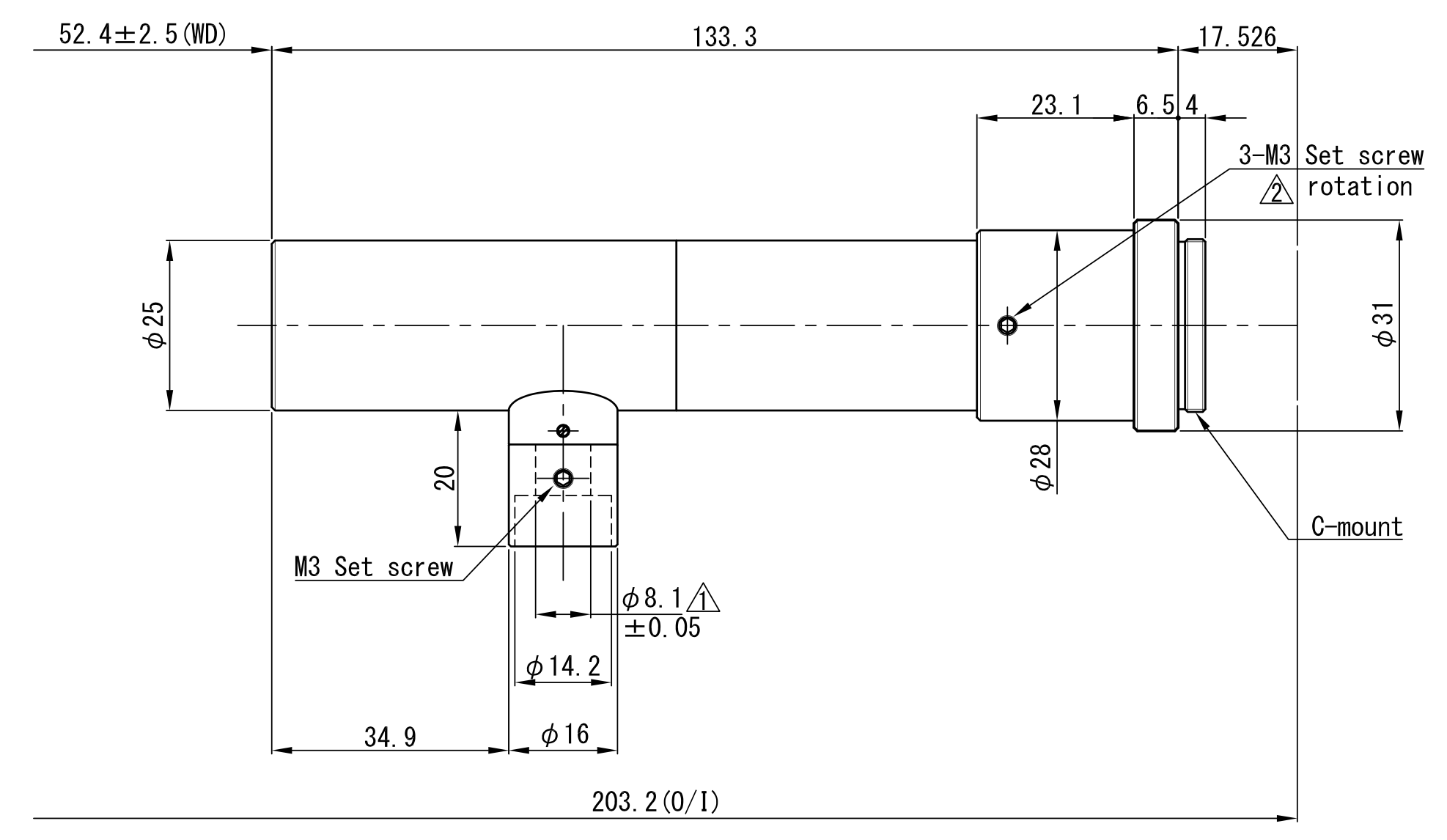

| Dimension | Φ 31 (MAX) × L=133.3 mm |
