VS-TEV07510
VS-TEV series is a 1.1″ variable magnification telecentric lens that delivers a clear, high-quality image. It features a 3.45μm pixel resolution, adjustable DOF and high telecentricity. Its three varying magnification ranges of 0.3x – 0.5x, 0.5x – 0.75x, and 0.75x – 1x have you covered every spectrum. In addition, the variable iris allows for easy DOF and contrast balance adjustment. This series of lenses is available for C-mount.
| Model | VS-TEV07510 | ||
|---|---|---|---|
| Optical Mag. | x 0.75 | × 1.0 | |
| FOV (V x H) | 1.1" | 13.9 x 18.8mm | 10.4 x 14.1mm |
| 1" | 15.0 x 15.0mm | 11.3 x 11.3mm | |
| 2/3" | 9.5 x 11.2mm | 7.1 x 8.4mm | |
| WD | 133.9mmmm | 114.0mm | |
| O/I (Object & Imager Distance) | 270.8mm | 267.7mm | |
| Working F/# *Value at Iris Open | 6.8 | 8.5 | |
| NA | 0.055 | 0.059 | |
| DOF at PCoC φ0.04mm | 1.0 mm | 0.7 mm | |
| TV Distortion (1.1") | 0.04 % | 0.02 % | |
| Relative Illuminance (Y=8.8) | 98 % | 99% | |
| Wavelength | Visible | Visible | |
| Mount | C-Mount | C-Mount | |
| Flange Back | 17.526 mm | 17.526 mm | |
| Sensor Size (max.) | 1.1" | 1.1" | |
| Filter Thread | M 40.5 P= 0.5 | M 40.5 P= 0.5 | |
| Weight (approx.) | 370g | 370g | |

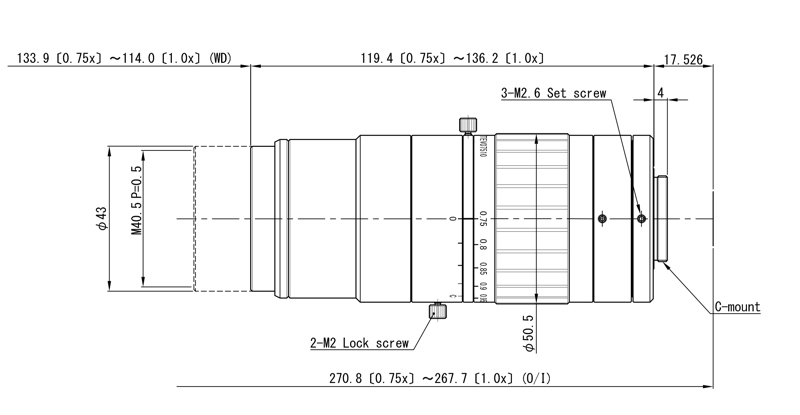

| Dimension | φ 50.5 (max.) × L= 119.4 ~ 136.2 mm | φ 50.5 (max.) × L= 119.4 ~ 136.2 mm |
