VS-THV-SWIR Series

Telecentric Lenses for 1000nm ~ 1600nm SWIR

Main  >  Product  >  Machine Vision Lenses  > Telecentric Lens  > VS-THV-SWIR Series



VS-THV-SWIR Series

  • SWIR optimized coaxial light input port
  • 1.1” & 1” support
  • Optical mag. 1.0x/1.5x/2.0x/3.0x/4.0x, 5 models
  • Co-axial lighting

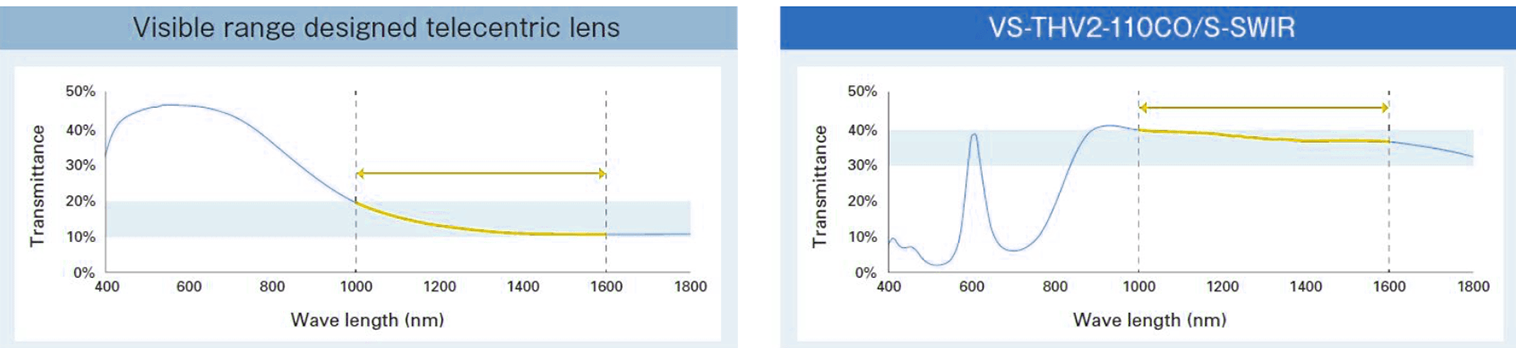

Transmittance

Y:Transmittance(%) X:Wave Length (nm)

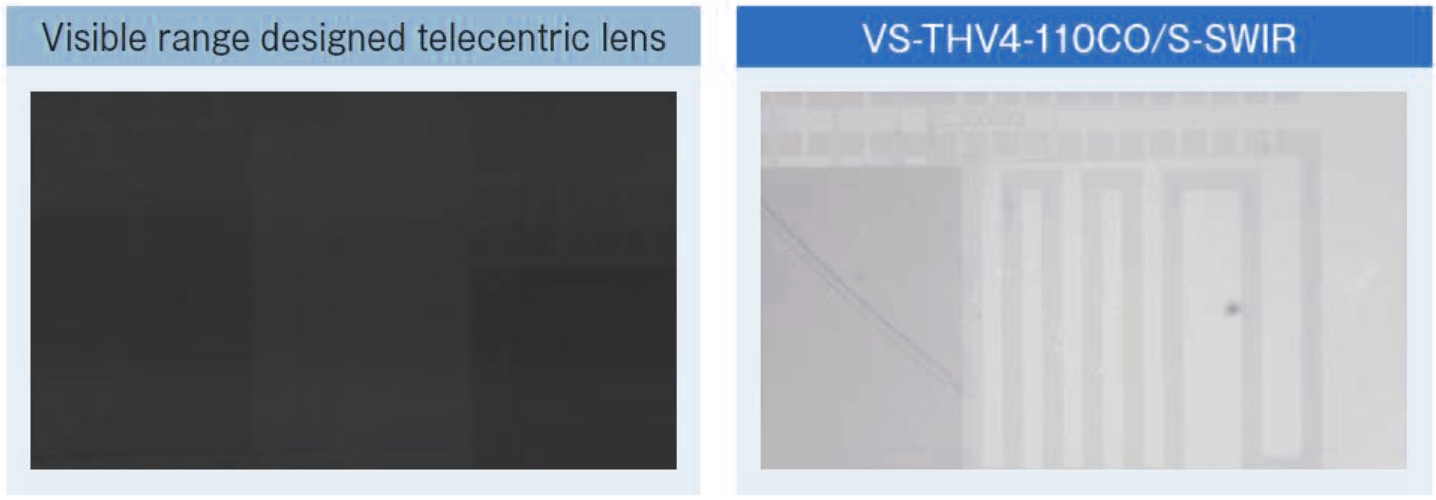

Transmittance Comparison (Captured at same shutter speed)

*4 times higher transmittance in the 1000nm ~ 1600nm range

Model Opt. Mag.WD(mm)Co-ax lighting prismWorking F/#NA
VS-THV1-110CO/S-SWIR1.0x111.1YES10.50.048
VS-THV1.5-110CO/S-SWIR1.5x110.4YES10.50.075
VS-THV2-110CO/S-SWIR2.0x110.4YES10.00.100
VS-THV3-110CO/S-SWIR3.0x111.2YES12.50.120
VS-THV4-110CO/S-SWIR4.0x110.4YES15.40.130
