VS-TLS (FR) series is new VST’s concept lens can fit various optical magnification required by the customer by dividing the front lens and rear lens into two parts and multiplying them. Environmentally friendly product design that enables reduction of costs incurred by specification changes after installation. To ensure performance in a variety of application environments, front and rear coupling structure, with unique locking ring configuration (X lock system) ensures lens accuracy and function ring that holds the lens allows adjustment of the holding plate and camera position.

• Wide field of view, high telecentricity
• Low distortion to the periphery
• Up to 20 different optical magnifications can be achieve by freely combining  4 front models and 5 rear models.

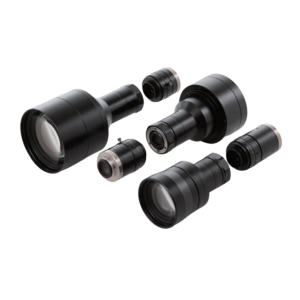

Fit-X  (Fit-Cross)

By separating the front and rear lenses into two parts and adjusting them by a factor of -X-, VST’s innovative lens design can accommodate various optical magnifications as per the customer’s requirements.

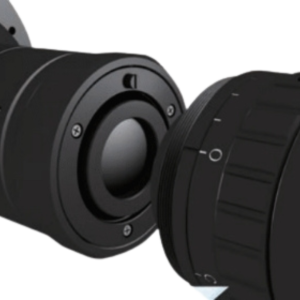

X Lock System

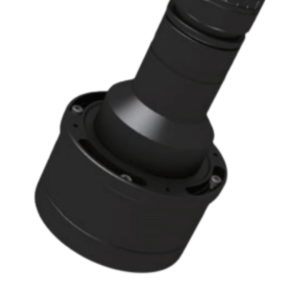

Function Ring

This ring is made to securely connect a plate supporting the lens without requiring a jig to grip the lens body, thus minimizing any negative effects on performance. By rotating the Function Ring, both the holding plate and the camera’s position can be adjusted beforehand, lessening the necessity of repeatedly attaching and removing the lens for precise adjustments.

Model	Opt. Mag.	WD(mm)	NA	Co-ax lighting prism	Mount
VS-TLS-F280/VS-TLS-R40	0.136	170	0.012	No	C (2/3")
VS-TLS-F280/VS-TLS-R50	0.171	170	0.015	No	C (2/3")
VS-TLS-F280/VS-TLS-R60	0.225	170	0.014	No	C(1.1")
VS-TLS-F280/VS-TLS-R80	0.300	170	0.019	No	C(4/3")
VS-TLS-F280/VS-TLS-R140	0.496	170	0.023	No	M52 P=0.75（F, M42, TFL and more）
VS-TLS-F210/VS-TLS-R40	0.179	150	0.016	No	C (2/3")
VS-TLS-F210/VS-TLS-R50	0.224	150	0.02	No	C (2/3")
VS-TLS-F210/VS-TLS-R60	0.295	150	0.018	No	C(1.1")
VS-TLS-F210/VS-TLS-R80	0.393	150	0.025	No	C(4/3")
VS-TLS-F210/VS-TLS-R140	0.650	150	0.03	No	M52 P=0.75（F, M42, TFL and more）
VS-TLS-F190/VS-TLS-R40	0.199	130	0.018	No	C (2/3")
VS-TLS-F190/VS-TLS-R50	0.250	130	0.022	No	C (2/3")
VS-TLS-F190/VS-TLS-R60	0.330	130	0.021	No	C(1.1")
VS-TLS-F190/VS-TLS-R80	0.439	130	0.027	No	C(4/3")
VS-TLS-F190/VS-TLS-R140	0.726	130	0.0033	No	M52 P=0.75（F, M42, TFL and more）
VS-TLS-F140/VS-TLS-R40	0.275	100	0.025	No	C (2/3")
VS-TLS-F140/VS-TLS-R50	0.344	100	0.031	No	C (2/3")
VS-TLS-F140/VS-TLS-R60	0.454	100	0.028	No	C(1.1")
VS-TLS-F140/VS-TLS-R80	0.604	100	0.038	No	C(4/3")
VS-TLS-F140/VS-TLS-R140	1.000	100	0.045	No	M52 P=0.75（F, M42, TFL and more）
