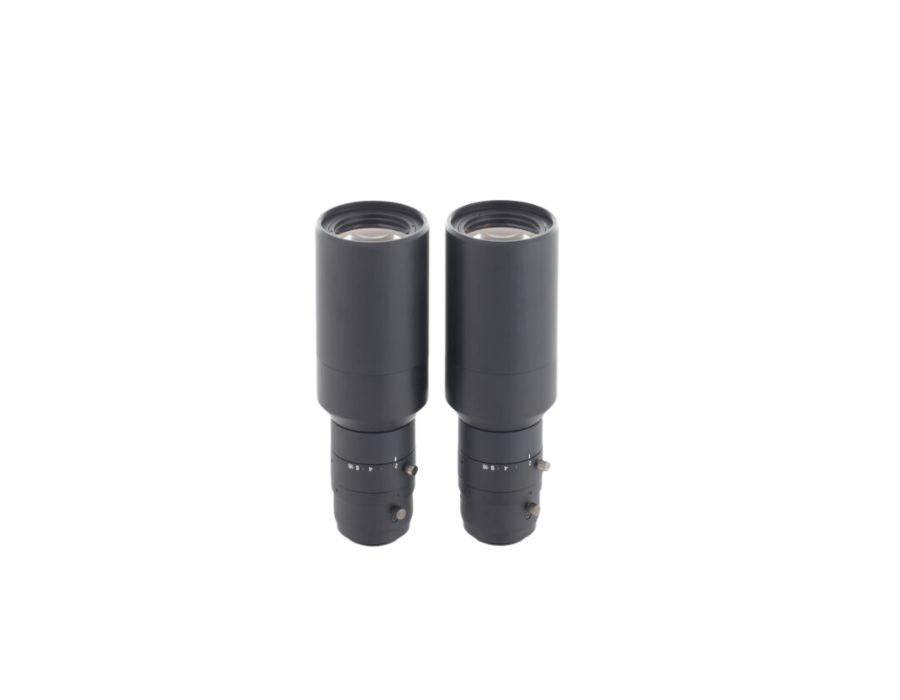

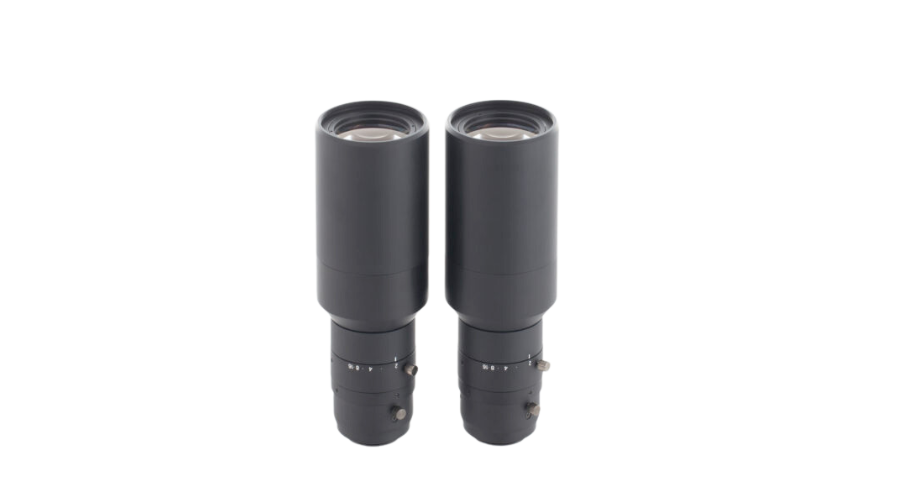

VS-WA06520/S

Inner Surface Inspection of Bottles and Containers

Main  >  Product  >  Machine Vision Lenses  > Fixed Focal TV Lens  > VS-WA Series > VS-WA06520/S

VS-WA06520/S

VST’s unique optical design allows there to be some space between the lens and the object permitting the placement of lighting devices. With standard fisheye lenses or lenses that have a short focal length, the WD is also short and which doesn’t leave any room for lighting. It also has a manual Iris/Focus, which is critical for maximizing its DOF.

ModelVS-WA0652
Focal Length-6.5mm
Maximum Aperture1: 2.0
ApertureF2.0~ 16
Angle of View32.0 x 43.2 (Diagonal 54.9)
MOD100 mm
OperationManual
WavelengthVisible ~ 850nm
Camera mountC-Mount
Flange Back17.526 mm
Sensor Size1/3"
Filter Thread M=46 P=0.75
Weight (approx.)410 g
Dimensionφ51(max.) × L = 148.8mm
